IP55 Steel Sloping Front Pushbutton Enclosures for 22mm & 30.5mm Pushbuttons

Featured Automation > Enclosures > Pushbutton Enclosures > SCE_PBA

SCE-6PBA

Click the image to enlarge

	Made from 1.9 mm Thick Carbon Steel
	IP55 Rating for Water and Dust Protection
	Continuously Welded Seams
	Captivated Cover Screws Thread Into Sealed Wells
	4-Way Pushbutton Holes Accept All Brands of Oil-Tight Pushbuttons, Switches and Pilot Lights
	Oil-Resistant Gasket

Application
Designed to offer protection for all standard brands of oil-tight pushbuttons, switches, and pilot lights where slanted surfaces are desired. It offers protection from dust, dirt, oil and water.

Finish
ANSI-61 grey powder coating inside and out over phosphatized surfaces.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

Pricing & Availability

Specify Model Number.


Part Number	Availability	Price	Description	Quantity

IP55 Front Sloping Pushbutton Enclosures for 30.5mm Pushbuttons

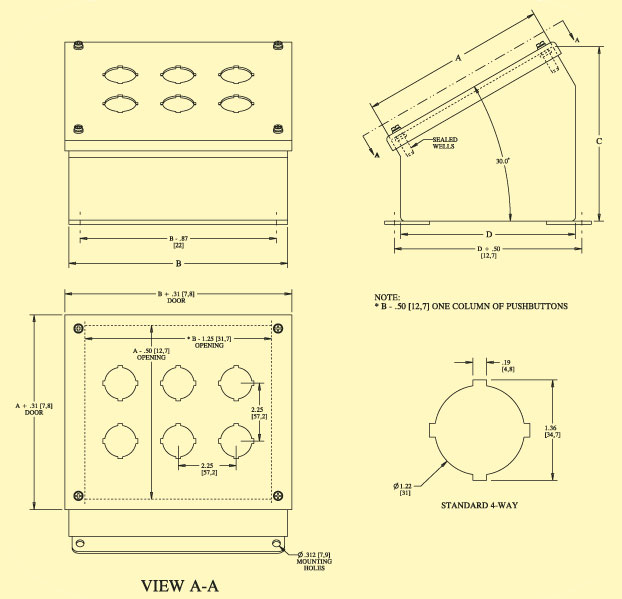

SCE-1PBA	1 Week	EUR 67,00	1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53
SCE-2PBA	1 Week	EUR 77,00	2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53
SCE-3PBA	2 Weeks	EUR 87,00	3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53
SCE-4PBA	2 Weeks	EUR 99,00	4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53
SCE-4SPBA	2 Weeks	EUR 110,00	4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78
SCE-6PBA	2 Weeks	EUR 128,00	6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78
SCE-8PBA	1 Week	EUR 145,00	8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78
SCE-9PBA	2 Weeks	EUR 151,00	9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73
SCE-10PBA	2 Weeks	EUR 161,00	10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78
SCE-12PBA	2 Weeks	EUR 175,00	12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78
SCE-12SPBA	2 Weeks	EUR 168,00	12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69
SCE-16PBA	2 Weeks	EUR 187,00	16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69

IP55 Front Sloping Pushbutton Enclosures for 22mm Pushbuttons

SCE-1PBAI	1 Week	EUR 67,00	1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53
SCE-2PBAI	1 Week	EUR 77,00	2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53
SCE-3PBAI	2 Weeks	EUR 87,00	3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53
SCE-4PBAI	1 Week	EUR 99,00	4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53
SCE-4SPBAI	2 Weeks	EUR 110,00	4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78
SCE-6PBAI	2 Weeks	EUR 128,00	6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78
SCE-8PBAI	2 Weeks	EUR 145,00	8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78
SCE-9PBAI	2 Weeks	EUR 151,00	9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73
SCE-10PBAI	2 Weeks	EUR 161,00	10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78
SCE-12PBAI	2 Weeks	EUR 175,00	12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78
SCE-12SPBAI	2 Weeks	EUR 168,00	12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69
SCE-16PBAI	2 Weeks	EUR 187,00	16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69

Base and Column Accessories

SCE-18SBASE	2 Weeks	EUR 106,00	Pedestal Base 18.00 x 18.00 x 1.00
SCE-24SBASE	2 Weeks	EUR 241,00	Pedestal Base 24.00 x 24.00 x 1.00
SCE-44CCOL	2 Weeks	EUR 175,00	Straight Column 4.00 x 4.00 x 35.00
SCE-44PBCOL	2 Weeks	EUR 208,00	Angled Column 4.00 x 4.00 x 35.00
SCE-66CCOL	2 Weeks	EUR 262,00	Straight Column 6.00 x 6.00 x 35.00
SCE-66PBCOL	2 Weeks	EUR 312,00	Angled Column 6.00 x 6.00 x 35.0
OMPBD7-AHA1	1 Week	EUR 12,00	30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel

Ordering Example:
(1) SCE-1PBA IP55 Angled Front Pushbutton Enclosure = EUR 67,00

Data Sheet , Related Products

Data Sheet
Download Product Specification Sheet (SCE_PBA.pdf)
Related Products
	10250T112 Heavy-Duty 30.5mm Metal Pushbuttons
	E34EB2 30mm Rugged Push Buttons, Selector Switches, Contact Blocks and Legend Plates
	HW2845/7-6-100 Silver Plated Copper Instrument Wire, PTFE Insulation
	HW3047-1-100 Single Conductor Copper Wire, PVC Insulation
	HW5853-5-100 Silver Plated Copper Equipment Wire, PTFE Insulation
