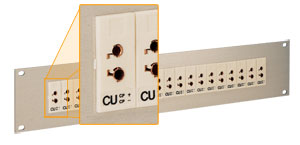

19 inch Rack Panels with Universal Thermocouple Sockets. Accept Standard and Miniature Plugs

19UJP Series

19

175,01 19UJP1-20-U

  • Accepts Standard and Miniature Thermocouple Plugs
  • Dust Caps Supplied with Each Panel
  • Individually Numbered Sockets
  • Optional Cut-Outs for Switches and Indicators
Thermocouple Connectors and Panel Systems - View related products

Description

Part Number Guide   Dimensions
Model No. Total No.
of Sockets
Switch
Cutout
Meter
Cutout
19UJP1-10-(*) 10 --- ---
19UJP1-20-(*) 20 --- ---
19UJP2-20-(*) 20 --- ---
19UJP2-28-(*) 28 --- ---
19UJP2-30-(*) 30 --- ---
19UJP3-30-(*) 30 --- ---
19UJP4-40-(*) 40 --- ---
19UJP1-10-(*)-OSW 10 76 mm ---
19UJP3-30-(*)-OSW 30 127 mm ---
19UJP4-40-(*)-OSW 40 127 mm ---
19UJP1-10-(*)-OSW-MTR 10 76 mm 1/8 DIN
19UJP3-30-(*)-OSW-MTR 30 127 mm 1/8 DIN
19UJP4-40-(*)-OSW-MTR 40 127 mm 1/8 DIN
19UJP1-10-(*)-SW14 10 ¼ DIN ---
19UJP3-30-(*)-SW14 30 ¼ DIN ---
19UJP4-40-(*)-SW14 40 ¼ DIN ---
19UJP1-10-(*)-SW14-MTR 10 ¼ DIN 1/8 DIN
19UJP3-30-(*)-SW14-MTR 30 ¼ DIN 1/8 DIN
19UJP4-40-(*)-SW14-MTR 40 ¼ DIN 1/8 DIN
*Insert calibration code in model number: J, K, T, N, E, R, S or U.

19" Panels with Sockets
No. of
Rows
Panel Height Max. No.
of Sockets
1 89 mm 22
2 133 mm 44
2 178 mm 66
4 222 mm 88


19" Panels with Sockets & Switch Cutout
No. of
Rows
Panel Height Switch Size Max. No.
of Sockets
OSW SW14
1 133 mm 76 mm ¼ DIN 15
2 133 mm 76 mm ¼ DIN 30
2 178 mm 127 mm ¼ DIN 30
3 178 mm 127 mm ¼ DIN 45
4 222 mm 127 mm ¼ DIN 60


19" Panels with Sockets, Switch and Meter Cutouts
No. of
Rows
Panel Height Switch Size Meter
Cut-Out
Max. No.
of Sockets
OSW SW14
1 133 mm 76 mm ¼ DIN 1/8 DIN 10
2 133 mm 76 mm ¼ DIN 1/8 DIN 20
2 178 mm 127 mm ¼ DIN 1/8 DIN 20
3 222 mm 127 mm ¼ DIN 1/8 DIN 30
4 222 mm 127 mm ¼ DIN 1/8 DIN 40


Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Example part numbers are shown below. Please use the Part Number Builder below this table to select your exact configuration.
19UJP1-10-J
107.54
Availability: 7 weeks

Thermocouple Panel with 10 J Type sockets (1 row of 10)
19UJP1-20-KI
172.06
Availability: 7 weeks

Thermocouple Panel with 20 K Type Sockets (1 row of 20)
19UJP2-20-KI
319.52
Availability: 7 weeks

Thermocouple Panel with 20 K Type sockets (2 rows of 10)
19UJP2-30-TI
456.00
Availability: 2 weeks

Thermocouple Panel with 30 T Type sockets (2 rows of 15)
All amounts shown in EUR
Note: Note: When a switch is ordered with a panel, installation is included at no extra charge, add suffix “-MTG” to model number of switch or meter. Panels with switches and/or meters are not supplied wired. A wiring service is available, contact sales for details. Switches and Meters Sold Separately. A 1/8 DIN (45 x 92 mm) meter cutout is supplied unless otherwise specified.

Ordering Example: (1) 19UJP1-10-K 19, €107.54

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Number of Rows select from:
1 for 1 row
2 for 2 rows
3 for 3 rows
4 for 4 rows

(2) Total Number of Sockets select from:
10 for 10 sockets
20 for 20 sockets
28 for 28 sockets
30 for 30 sockets
40 for 40 sockets

(3) Thermocouple Calibration select from:
J for J type
KI for K type
TI for T type
NI for N type
E for E type
R/SI for R or S type
U for uncompensated (copper)

(4) Optional Switch Cutout select from:
Nothing(leave field blank) for no switch cutout
-OSW for switch cutout
-SW14 for 1/4 DIN switch cutout

(5) Optional Meter Cutout select from:
Nothing(leave field blank) for no meter cutout
-MTR for 1/8 DIN meter cutout
Note: All combinations may not be valid, check spec sheet for valid part numbers.
