Microstepping Motor Drives

3540M

Microstepping Motor Drives | 3540M

Microstepping Motor Drives

See All Models Below

  • DC Bus Voltage 12 to 42 Vdc Motor Supply (Including Ripple)
  • Switch Selectable Motor Currents from 0.4 to 3.5 A/Phase
  • Optically Isolated 5 Vdc Inputs for Step, Direction and Enable
  • Enable Input to Turn Off Current to the Motor
  • Screw Terminal Connectors
  • MOSFET, Dual H-Bridge, Inaudible PWM Amplifier
  • 3 State, Pulse Width Modulated Current Control, Switching at 20 to 30 KHz

Description

Click on this link if you need more information about Stepper motor.

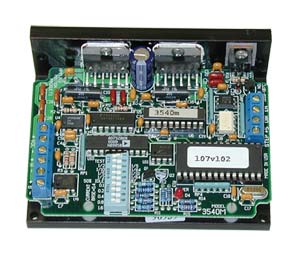

The 3540M/MO step motor drivers are microstepping drives with up to 12,800 steps per revolution, step phase sequencer with MOSFET three state switching amplifiers and optoisolated circuits. Both drives include 5 optically isolated inputs, and the 3540MO features external speed control, tach output, and internal pots for accel/decel rate along with high/low speed range selection.

The 3540M drive is a step and direction drive, and includes an automatic feature (switch selectable) to lower motor current by 50% anytime the motor is left at rest for more than one second. Additionally there is a switch-selectable self-test which rotates the motor 1/2 revolution in each direction at 100 steps/second. This drive is compatible with PLCs which feature high-speed pulse output, such as our ELC-PLC series and OCS XL series.
Note: the Step, Direction, and Enable inputs are +5V-logic compatible. For operation with +24V signals, a 3600-ohm series resistor is required on each input. See the drive manual for details.

The 3540MO drive has an on-board oscillator which allows the motor speed to be controlled by an analog voltage or external joystick. This drive is ideal for continuous motion applications such as mixers and blenders. A tach output is also available on this drive.

Motor current for both drives is selected from 32 levels by a DIP switch. Microstepping resolution is selectable by DIP switch on the 3540M. On the 3540MO, microstepping resolution is fixed at 12,800 steps/revolution.

Learn more about stepper motors and drives: Introduction to Stepper Motors and Drives

Click here for more info on the ELC series PLC: ELC-PLC Series

Click here for more info on the OCS XL series PLC: OCS XL Series

Power Supply (Required for Drive Operation): Recommended: OMPS150A24
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
3540M
Consult Sales
Availability:


Microstepping step motor drive, 3.5 A/phase, 40 VDC
3540MO
Consult Sales
Availability:


Microstepping step motor drive with digital oscillator
Recommended Motors
OMHT17-075
114.28
Availability: 11 weeks

NEMA 17, 62.8 oz-in holding torque
OMHT23-397
Consult Sales
Availability:


NEMA 23, 177 oz-in holding torque
OMHT23-400
Consult Sales
Availability:


NEMA 23, 264 oz-in holding torque
Accessories
OMPS150A24
Consult Sales
Availability:


Stepper drive power supply, 24 VDC, 6.3A
All amounts shown in EUR
Note: To see torque-speed curves for recommended motors, click on "Specs" above.

Product Manuals:

Download 3540M - Step Motor Driver
Download 3540MO Series - Step Motor Driver
