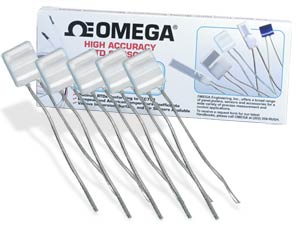

OMEGA™ Thin Film DIN Class B Elements

5 Pack RTD Elements

^€72,78 5RTD-F3101

PLACE ORDER

DIN Class "B" Accuracy (for Less Critical Applications)
Temperature Range: -70 to 500°C (- 94 to 932°F)
Economical 5-packs
Various Sizes Available
Resistance Specifications Include 100, 500, and 1000 Ohms at 0°C
European Curve: Alpha = 0.00385

RTD (PT100) Probes, Elements and Assemblies - View related products

Description

OMEGA thin film DIN Class "B" RTD elements have a resistance tolerance of 100.00 ±0.12, 500.00 ±0.60, or 1000.00 ±1.20 at 0°C, and they meet the requirements of IEC751. They are sold with 0.2 mm diameter by 10 mm long gold palladium leads. Series WS elements have a donut shape that provides for convenient surface attachment using a screw, rivet, or fastener. These elements can be used as is with controllers and instruments, or as part of a sensor assembly.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

5RTD-F3101

€72,78

Availability: 4 weeks

5 Platinum Thin Film RTD Elements, 100 Ohm, 2.0mm by 10.0mm, 10mm long leads

5RTD-F3141

€75,48

Availability: 4 weeks

5 Platinum Thin Film RTD Elements, 1000 Ohm, 2.0mm by 10.0mm, 10mm long leads

5RTD-F3102

€72,78

Availability: 4 weeks

5 Platinum Thin Film RTD Elements, 100 Ohm, 4.0mm by 5.0mm, 10mm long leads

5RTD-F3142

€75,48

Availability: 4 weeks

5 Platinum Thin Film RTD Elements, 1000 Ohm, 4.0mm by 5.0mm, 10mm long leads

5RTD-F3105

€72,78

Availability: 1 week

5 Platinum Thin Film RTD Elements, 100 Ohm, 2.0mm by 2.0mm, 10mm long leads

5RTD-F3145

€75,48

Availability: 1 week

5 Platinum Thin Film RTD Elements, 1000 Ohm, 2.0mm by 2.0mm, 10mm long leads

† All amounts shown in EUR
