Handheld Thermocouple Sensors for Surface, Insertion and Air

88000 Series

Handheld Thermocouple Sensors for Surface, Insertion and Air | 88000 Series

117,38 88308K-IEC

  • Straight and Right Angle Version
  • E and K Thermocouple Types
  • Small Surface Area Probes
  • Spring Loaded Compact Tip Styles
  • Pointed Tip Design Ideal for Measuring Soft and Semi-frozen Materials and Molten Plastics and Rubbers
  • TAS Adapter Sold Separately
Thermocouples - View related products

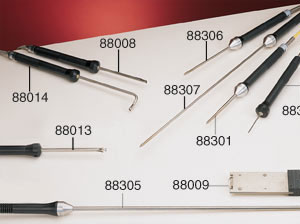

Description

Micro-Sensor Probe Model 88008(*)-IEC
Micro-sensor probe, designed for precise measurements of small surface areas, such as transistors and integrated circuits. Small contact surface area of 1.0 x 3.0 mm for fast response. 400°C max. surface temperature.
Note: element not replaceable.

Thin-Body Type Probe Model 88009(*)-IEC
Thin-body type probe designed to measure the surface of the bottom of narrow gaps or slits, like that of a plate heater. 260°C max. service temperature.
Note: element not replaceable.
Fast-Response Spring-Loaded Compact Tip Probe Model 88013(*)-IEC
Fast-response spring-loaded compact tip probe, for measurements to 815°C. Surface pad made from 400 series stainless steel. 4.75 mm dia. surface area. Not designed for long-term exposure to high temperatures.
Note: element not replaceable.
Right angle version of the 88013
Model 88014(*)-IEC
Right angle version of the 88013. Fast-response spring-loaded compact tip probe, for measurements to 815°C. Surface pad made from 400 series stainless steel. 4.75 mm dia. surface area. Not designed for long-term exposure to high temperatures.
Note: element not replaceable.
Right angle version of the 88008 Model 88104(*)-IEC
Right angle version of the 88008, with unique lateral spring design and small contact surface area. 400°C max. surface temperature.
Note: element not replaceable.
Model 88301(*)-IEC Model 88301(*)-IEC
Suitable for measuring internal temperatures of semi-solid materials, such as rubbers, plastics, clay, as well as for liquid measurements. Tapered stainless steel sheath with 480°C max service temperature.
Note: element not replaceable.
Model 88305(*)-IEC Model 88305(*)-IEC
Measure temperatures in moving air, with drilled sheath protecting the thermocouple, while exposing it to air flow. 0.5 to 20 second response time (depending on air velocity). 480°C max service temperature.
Note: element not replaceable.
Model 88306(*)-IEC Model 88306(*)-IEC
Pointed tip design, ideal for measuring soft and semi-frozen material, molten plastics and rubbers. 100 mm sheath, with 6 to 20 s response time. 500°C max service temperature.
Note: element not replaceable.
Model 88307(*)-IEC Model 88307(*)-IEC
Longer version of the 88306, with 300 mm sheath.
Note: element not replaceable.
Specially Designed Fine Hypodermic Needle Probe Model 88308(*)-IEC
Specially designed fine hypodermic needle probe, least likely to disturb the surrounding insertion area. 6 to 20 second response time, 205°C max. service temperature.
Note: element not replaceable.

*Specify Calibration: K: CHROMEGA™-ALOMEGA™ E: CHROMEGA-Constantan

All 88000 series probes are supplied with retractable cable (expands to 1.5 m) and male subminiature connector.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
88008
88008K-IEC
Consult Sales
Availability:


K Type, Small contact surface area of 1 x 3 mm, 400°C maximum surface temperature.
88008E-IEC
Consult Sales
Availability:


E Type, Small contact surface area of 1 x 3 mm, 400°C maximum surface temperature.
88104
88104K-IEC
Consult Sales
Availability:


K Type, Right Angle Version of the 88008 (shown above)
88104E-IEC
Consult Sales
Availability:


E Type, Right Angle Version of the 88008 (shown above)
88013
88013K-IEC
218.43
Availability: 7 weeks

K Type, Spring-loaded compact tip, 4.75 mm dia. surface area, measurements to 815°C.
88013E-IEC
Consult Sales
Availability:


E Type, Spring-loaded compact tip, 4.75 mm dia. surface area, measurements to 815°C.
88014
88014K-IEC
224.56
Availability: 4 weeks

K Type, Right Angle Version of Model 88013 (Shown above)
88014E-IEC
Consult Sales
Availability:


E Type, Right Angle Version of Model 88013 (Shown above)
88305
88305K-IEC
125.92
Availability: 4 weeks

K type, Unique Air Probe with drilled sheath to protect thermocouple while allowing air to pass through, 480°C maximum temperature
88305E-IEC
Consult Sales
Availability:


E type, Unique Air Probe with drilled sheath to protect thermocouple while allowing air to pass through, 480°C maximum temperature
88306
88306K-IEC
156.76
Availability: 4 weeks

K type, Pointed tip, 100 mm sheath, 500 deg C
88306E-IEC
Consult Sales
Availability:


E type, Pointed tip, 100 mm sheath, 500 deg C
88307
88307K-IEC
140.46
Availability: 4 weeks

K type, Pointed tip, 300 mm sheath, 500 deg C
88307E-IEC
141.30
Availability: 4 weeks

E type, Pointed tip, 300 mm sheath, 500 deg C
88301
88301K-IEC
140.46
Availability: 1 week

K type, Pointed tip, 75 mm sheath, 480 deg C
88301E-IEC
Consult Sales
Availability:


E type, Pointed tip, 75 mm sheath, 480 deg C
88308
88308K-IEC
117.38
Availability: 7 weeks

K type, Hypodermic needle probe, 38 mm sheath, 205 deg C
88308E-IEC
Consult Sales
Availability:


E type, Hypodermic needle probe, 38 mm sheath, 205 deg C
88009
88009K-IEC
204.90
Availability: 5 weeks

K type, Thin body style, 260°C
88009E-IEC
Consult Sales
Availability:


E type, Thin body style, 260°C
TAS-K-3
11.84
Availability: 1 week

Compliant upon request K type thermocouple, male standard to female mini
TAS-E-3
11.63
Availability: 1 week

Compliant upon request E type thermocouple, male standard to female mini
All amounts shown in EUR
Note: All 88000 series probes are supplied with retractable cable (expands to 1.5 m) and male subminiature connector.
