General Purpose Industrial Grade Accelerometers

ACC101

accelerometers | ACC101

accelerometers

See All Models Below

1 year warranty
  • Industrial Accelerometers
  • Ideal for Machine Vibration Monitoring
  • Low Impedance Drives Cable Lengths to 300 metres
  • Fast Turn-on Time (1 Sec.)
  • 100 mV/g Output
Dynamic Measurement - View related products

Description

Find how an accelerometer works on this link.

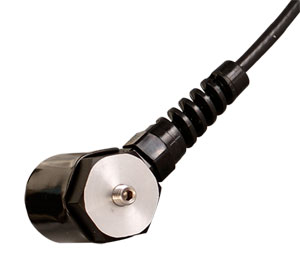

The ACC101 accelerometer is low cost yet extremely durable. These accelerometers are constructed using high strength aluminium, and feature a rugged strain relief, ¼-28 stud mounting, an epoxy seal, and use the kind of dependable components usually found only in higher priced accelerometers.

SPECIFICATIONS
Excitation: 2 mA nominal @ 24 to 30 Vdc, constant current (18 volt supply can be used but will limit amplitude range)
Rated Output: 100 mV/g nominal @ 100 Hz
Frequency Range: 3 Hz to 5 kHz (up to ±10 % rated output shift)
Amplitude Range: ±80 g peak with ACC-PS3A power supply/amplifier
Amplitude Linearity: ±1% up to 65 g peak
Temperature Range: -18 to 82°C
Temperature Sensitivity Effect:
-54 to 38°C ≤ 5% FS
38 to 121°C ≤ 8% FS
Thermal Shock: 1.2 g /°C
Transverse Sensitivity: 5% of axial maximum
Maximum g Without Damage: 5,000 g peak
Maximum g Without Clipping: ±80 g peak
Mounted Resonance Frequency: >18 kHz
Output Impedance: 50 Ω nominal
Bias Voltage: 10 V nominal
Base Strain: 0.002 g/microstrain max.
Noise Floor (wideband): 0.00025 g (rms)
Weight: 50 grams nominal (without cable)
Material: Aluminium, hard anodised thermal insulating boot included
Dimensions: 3.81 H x 2.54 cm hex base
Connector: 3 metre integral coaxial cable with BNCM
Mounting: 1/4-28 removable stud
Mounting Torque max: 40 cm-kg (35 in-lb)



Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
ACC101
Consult Sales
Availability:


Accelerometer with 3 metre cable
Accessories
MAGNET1
€124.62
Availability: 1 week

Magnetic mounting base 4.5 kg holding force (10 lb) 19 mm diameter x 19 mm high.
Amplifiers and Power Supplies
ACC-PS3A-230VAC
Consult Sales
Availability:


230 Vac powered constant current power supply (BNCF connections)
Interface cables used between power supply and instrumentation
ACC-CB4-6
Consult Sales
Availability:


1.8 metre long coaxial cable (BNCM/BNCM)
ACC-CB4-15
€82.21
Availability: 1 week

4.5 metre long coaxial cable (BNCM/BNCM)
ACC-CB5-2
€71.39
Availability: 8 weeks

60 cm long coaxial cable (BNCM/banana plug)
ACC-CB6
€31.80
Availability: 1 week

175 mm long coaxial cable (BNCM/pigtail)
All amounts shown in EUR
Ordering Example:   (1) ACC-CB5-2 60 cm long output cable for amplifer. BNC to banana plugs, €71.39
