MAXIMUM FLOW AIR HEATERS, For Low Pressure, High Flow Air Heating

AHF Series

MAXIMUM FLOW AIR HEATERS, High Flow Air Heating

^€191,62 AHF-06120

PLACE ORDER

Air heaters for temperatures up to 600°F
4-Inch O.D. Mounting Flange
Air Flows Up To 200 CFM*
Post Terminals Junction Box

Description

CFM	Max. Watts/Linear Inch of Heated Length
1	150
2	150
4	150
6	150
8	150
10	150
20	175
30	275
40	350
50	450
60	525

APPLICATIONS
The AHF series maximum flow air heaters are used with blowers or recirculating air in baking, drying, and preheating applications.

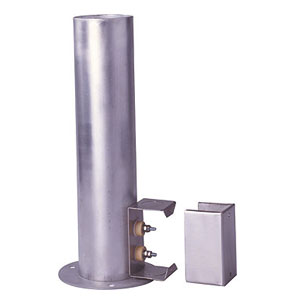

This air heater is designed with a 23/8" O.D. aluminum tube and a cross frame heating element for minimum resistance to air flow. The nickel-chrome heating element is insulated by ceramic beads on a stainless steel support frame which is firmly secured to the inside of the tube. Post terminals enclosed in a junction box simplify the wiring. A four-inch round flange with pre-drilled holes at the inlet side are used for mounting the heater. It has a practical operating range of up to 200 CFM with temperatures up to 600 °F (315°C).

Calculate the flow rate, temperature rise, or power requirement as follows:
Watts = SCFM x ΔT/3
SCFM = Standard Cubic Feet Per Minute
ΔT = Temperature Rise inDegrees F from the Inlet to the Outlet
Minimum flow rates are given in the table below.

SPECIFICATIONS
Maximum Amperage: 15
Cross Sectional Flow Area: 3.5 square inches
Threaded Terminals: 6-32

Model Number	Volts	Watts	Heated Length in (mm)	Watts/Inch**	Maximum CFM	Length in (mm)	Weight lb (kg)
120 VAC Models
AHF-06120	120	600	4 (102)	150	200	6 (152)	0.5 (0.23)
AHF-10120	120	1000	8 (203)	125	200	10 (254)	1.25 (0.57)
120/240 VAC Models*
AHF-12240	120 240	375 1500	10 (254) 10 (254)	38 150	200 200	12 (305)	1.5 (0.68)
AHF-14240	120 240	500 2000	12 (305) 12 (305)	42 166	200 200	14 (356)	1.75 (0.79)

*These air heaters can be operated on either 120 or 240 Volts. Specifications are given for operation on both 120 and 240 Volts.
**Indicates Watts per inch of heated length. Use the table above to determine minimum required flow rates. The Watts per inch of heated length can be changed by reducing the operating voltage or by ordering a custom made heater. Stainless steel construction also available. Consult Engineering.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

120 VAC Models

AHF-06120

€191.62

Availability: 11 weeks

air heater, 120 Vac, 600 W

AHF-10120

€253.35

Availability: 1 week

air heater, 120 Vac, 1000 W

120/240 VAC Models

AHF-12240

€287.63

Availability: 11 weeks

air heater, 240 Vac, 1500 W

AHF-14240

€282.19

Availability: 1 week

air heater, 240 Vac, 2000 W

† All amounts shown in EUR
