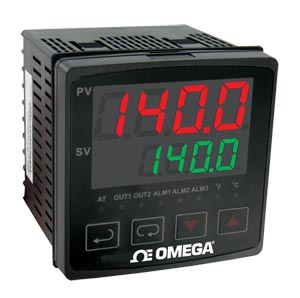

1/4 DIN Ramp/Soak Temperature/Process Controllers

CN7200 Series

1/4 DIN Ramp/Soak Temperature/Process Controllers | CN7200 Series

1/4 DIN Ramp/Soak Temperature/Process Controllers

244,23 CN7223

1 year warranty CE
  • Dual 4-Digit LED Display
  • 8 Ramp/Soak Programs, 8 Segments Each
  • Universal Inputs
  • Autotune
  • Dual Control Outputs
  • RS-485 Communications
  • Free Software
  • Alarm Functions

Description

The CN7200 Series ¼DIN temperature/process controllers are designed to accept thermocouple, RTD, current or voltage input and provide dual outputs for control. Available outputs include relay/relay, DC pulse/relay, current/relay, or linear voltage/relay. The units can be programmed for ON/OFF, PID, auto-tuning, or manual tuning control methods. The PID control is supported by 64 ramp/soak actions. The CN7200 Series also includes two additional alarm outputs. The second relay output can be reconfigured as a third alarm output. The alarm type can be selected from 13 different preprogrammed alarm functions. The controller features dual LED displays for local indication of process and setpoint values.

SPECIFICATIONS
Inputs: Thermocouple, RTD, DC voltages or DC current
Display: Two 4-digit, 7-segment
    PV: red, 19 mm (3.4") H
    SV: green, 12.7 mm (1.2") H
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C (32 to 122°F)
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPDT, 5 A @ 250 Vac resistive
Voltage Pulse: 14V, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Linear Voltage: 0 to 5V, 0 to 10V
Communication: RS-485 MODBUSR A-5-11/RTU communication protocol
Panel Cutout: ¼DIN, 92 mm square (3.622" square)
Dimensions: 96 x 96 x 15.8 mm bezel (3.78 x 3.78 x 0.625")
Panel Depth: 79.2 mm (3.125")
Weight: 425 g (15 oz)
Front Panel Rating: IP66
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
CN7223
244,23
Availability: 1 week

Dual output, DC Pulse/relay with RS-485*
CN7233
248,73
Availability: 1 week

Dual output, relay/relay with RS-485*
CN7253
214,94
Availability: 1 week

Dual output, 4 to 20 mA/relay with RS-485*
CN7263
248,73
Availability: 1 week

Dual output, 0 to 5, 0 to 10 Vdc/relay with RS-485*
Accessories
CNQUENCHARC
€51.23
Availability: In Stock

Noise suppression kit, 110 to 230 Vac
OMX-R250
€3.19
Availability: 1 week

250Ω precision resistor
DPP-6
1,008.29
Availability: 1 week

1/4 DIN Panel Punch
CN7-485-USB-1
Consult Sales
Availability:


RS485 to USB Converter
All amounts shown in EUR
Note: Comes with operator’s manual.
