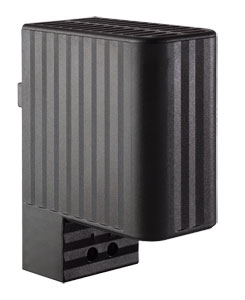

Touch-Safe Small Heater 10 W, 20 W

CSK060 Series

Enclosure Heaters | CSK060 Series

Enclosure Heaters

42,94 CSK06040

1 year warranty CE
  • Low Surface Temperature
  • Double Insulated (Plastic Housing)
  • Wide Voltage Range
  • Temperature Limiting
  • DIN Rail Mountable

Description

These heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.

Specifications
Operating Voltage: 115 to 240 Vac/Vdc* (min 110V, max 265V)
Heating Element: PTC resistor: temperature limiting
Surface Temperature: <85°C, (according to VDE 0100), except upper protective grille
Connection: 2-pole terminal 2.5 mm2, torque 0.8 Nm max
Casing: Plastic according to UL94 V-0, black
Dimensions: 98 x 38 x 75 mm
Mounting: Clip for 35 mm DIN rail, EN 50022
Fitting Position: Vertical
Operating/Storage Temperature: -45 to 70°C
Protection Type/Protection Class: IP20/II (double insulated)
Approvals: VDE + UL File No. E150057 (according to UL499 in combination with UL508A)

* Operating with voltages below 140 Vac/Vdc reduces heating performance by approximately 10%.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
CSK06030
46,44
Availability: 1 week

Enclosure heater, 20 W, 115 to 240 Vac/Vdc
CSK06040
42,94
Availability: 7 weeks

Enclosure heater, 10 W, 115 to 240 Vac/Vdc
All amounts shown in EUR
Note: Comes with operator’s manual.
Ordering Example: (1) CSK06030 Enclosure heater, €46,44
