Enhanced Modular Controller Series Master

CSMSTRSX, CSMSTRGT

Enhanced Modular Controller Series Master | CSMSTRSX, CSMSTRGT

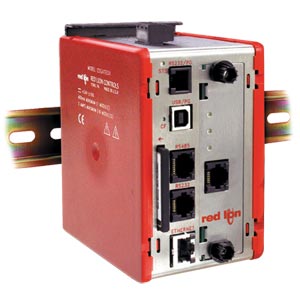

Enhanced Modular Controller Series Master

910,00 CSMSTRSX

CE
  • Provides Enhanced Features For Data Acquisition Or Multi-Zone PID Control Applications
  • Webserver Provides Worldwide Access to Data Logs And Virtual HMI
  • Virtual HMI Offers Built-In PC-Based SCADA Functionality
  • Performs Hierarchical Control of Other Modules in the Modular Controller Series
  • Stores Module Configuration Information, and Automatically Reprograms Replaced Modules
  • Extensive Built-In Driver List Allows Easy Data Mapping to PLCs, PCs, and SCADA Systems
  • Independent Serial Ports Provide Virtually Unlimited Integration Methods
  • 10 Base-T/100 Base-Tx Ethernet Connection Provides Networking Capability
  • Supports up to 16 Modular Controller Series Modules
  • Compactflash® Slot Allows Process Data to be Logged Directly to CSV Files

Description

cp, Web-enable your PLC! The CSMSTR is a communications and control platform which can turn your PLC or controller into a SCADA system. With its extensive list of built-in drivers, up to 5 serial ports, and an Ethernet port capable of running four different protocols simultaneously, the CSMSTR allows disparate controllers and devices to communicate with each other.
Do you need data logging but your PLC doesn''t provide it? The CSMSTR can log data from any device connected to it. Log files are stored on a CompactFlash memory card, and can be automatically copied to network storage.
Do you need remote viewing and control of your process? The CSMSTR has a built-in web server which allows remote access from any network-connected PC and can send alarm messages to your email and cellphone.
Do you want to turn your PLC into a temperature controller? Simply add CS-series control modules for PID loop control with ramp/soak capabilities (up to 32 independent zones). Implement PID control of any process variable, including pressure, flow, and strain gauge inputs in addition to temperature.

Here are just a few of the features provided by the CSMSTR:
Protocol Converter
Allows data to be shared between any connected devices. Data registers from one PLC can be mapped to registers from a different PLC or controller.
Web Server
Create virtual web pages, incorporating data tags from any connected device, which can be accessed from any network-connected PC or web-enabled phone. The CSMSTRSX provides a QVGA (320x240) virtual HMI, while the CSMSTRGT provides full-size VGA (640x320) pages.
IT-Ready Data Logger
Log data to a CompactFlash card from any connected device, then automatically copy the comma-delimited (.csv) log files to a network drive at pre-defined intervals.

Click here to download CSMSTRSX/GT user manual

The CSMSTR is programmed with Crimson software for Windows® 2000 or later platforms. The software is an easy to use, graphical interface which provides a means of creating virtual web pages and configuring communications and data logging. You can even write your own control functions using the built-in "C" language-like editor and compiler.

Serial cables for G3 HMI, Data Station Plus, and CSMSTR series
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
CSMSTRSX Star
910,00
Availability: 3 weeks

Modular controller master with protocol conversion, data logger, web server, virtual HMI up to QVGA (320X240) size and expansion slot.
CSMSTRGT Star
1.215,00
Availability: 3 weeks

Modular controller master with protocol conversion, data logger, web server, full VGA virtual HMI (640X480) size and expansion slot with increased DRAM
Accessories
SFCRM200 Star
57.00
Availability: 1 week

Crimson 2 programming software, manual and USB programming cable
G3CF002G Star
152.00
Availability: 3 weeks

2 GB compact flash card (industrial grade 2 million write cycles)
CBLPROG0 Star
40.00
Availability: 3 weeks

RS232 programming cable for G3, DSP and modular controller, DB9 to RJ11
CBLUSB00 Star
26.50
Availability: 1 week

USB programming cable for G3, DSP and modular controller, type A-B
PSDR0100 Star
127.00
Availability: 1 week

Mini power supply 1A
PSDR0200 Star
156.00
Availability: 3 weeks

Mini power supply 2A
PSDR0400 Star
199.00
Availability: 1 week

Mini power supply 4A
RSRSTP00 Star
4.60
Availability: 1 week

Rail stops (qty 2)
CSTERM00 Star
10.25
Availability: 3 weeks

Replacement termination plug
CSBASE00 Star
30.50
Availability: 1 week

Replacement base
Modules
CSDIO14R Star
244.00
Availability: 3 weeks

8-inputs 6 relay outputs
CSDIO14S Star
240.00
Availability: 1 week

8-inputs 6 solid state (NFET) outputs
CSINV800 Star
520.00
Availability: 3 weeks

8-channel ±10 V input module
CSINI800 Star
520.00
Availability: 3 weeks

8-channel 0(4) to 20 mA input module
CSOUT400 Star
276.00
Availability: 1 week

4-channel analog output
CSPID1R0 Star
221.00
Availability: 3 weeks

Single loop module, relay outputs
CSPID1RA Star
244.00
Availability: 3 weeks

Single loop module, relay outputs, analog output
CSPID1RM Star
240.00
Availability: 3 weeks

Single loop module, relay outputs, heater current input
CSPID1S0 Star
221.00
Availability: 3 weeks

Single loop module, solid state (NFET) outputs
CSPID1SA Star
240.00
Availability: 3 weeks

Single loop module, solid state (NFET) outputs, analog output
CSPID1SM Star
240.00
Availability: 3 weeks

Single loop module, solid state (NFET) outputs, heater current input
CSPID1TA Star
240.00
Availability: 3 weeks

Single loop module, triac outputs, analog output
CSPID2R0 Star
330.00
Availability: 1 week

Dual loop module, relay outputs
CSPID2RM Star
362.00
Availability: 1 week

Dual loop module, relay outputs, heater current input
CSPID2S0 Star
330.00
Availability: 3 weeks

Dual loop module, solid state (NFET) outputs
CSPID2SM Star
362.00
Availability: 3 weeks

Dual loop module, solid state (NFET) outputs, heater current input
CSPID2T0 Star
330.00
Availability: 3 weeks

Dual loop module, triac outputs
CSPID2TM Star
362.00
Availability: 3 weeks

Dual loop module, triac outputs, heater current input
CSRTD600 Star
389.00
Availability: 3 weeks

6-channel input, RTD
CSSG10RA Star
312.00
Availability: 3 weeks

Single loop, 1 strain gage input, relay outputs, analog out
CSSG10SA Star
312.00
Availability: 3 weeks

Single loop, 1 strain gage input, solid state (NFET) outputs, analog output
CSSG11RA Star
389.00
Availability: 3 weeks

Single loop, 2 strain gage input, relay outputs, analog out
CSSG11SA Star
389.00
Availability: 3 weeks

Single loop, 2 strain gage input, solid state (NFET) outputs, analog output
CSTC8000 Star
520.00
Availability: 3 weeks

8-channel thermocouple module
DIN Rail
DRTB-RAIL-3575 Star
5.70
Availability: 1 week

DIN rail 35 x 7.5 mm, 2 m long
DRTB-RAIL-3575-1 Star
3.20
Availability: In Stock

DIN rail 35 x 7.5 mm, 1 m long
DRTB-RAIL-3575-1-20PK Star
Consult Sales
Availability:


DIN rail 35 x 7.5 mm, 1 m long, 20 pack
DRTB-RAIL-3575-20PK Star
Consult Sales
Availability:


DIN rail 35 x 7.5 mm, 2 m long, 20 pack
All amounts shown in EUR
Note: Comes with termination plug, terminal power block and complete operator’s manual
Ordering Example: (1) SFCRM200 Software, €57.00  plus (1) G3CF002G 2GB flash card, €152.00  plus (1) PSDR0100 power supply, €127.00  plus (1) CSDIO14R module, €244.00  plus (1) CSMSTRSX Controller, €910.00, €57.00 + 152.00 + 127.00 + 244.00 + 910.00 = €1,490.00
