Constant Wattage Heat Cable

CWM

See All Models Below

PLACE ORDER

Constant Output
Cut to Any Length
Lower Installation Costs
Flexible

Description

More information about how Industrial Heaters work in this link.

OMEGALUX™ CWM (Constant Wattage Medium Temperature) heating cable is the ideal answer to those pipe tracing situations which require higher temperatures for process maintenance as well as freeze protection. No matter what length of cable is needed, wattage (or heat) produced by each foot of cable remains unchanged.

Caution and Warning!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.

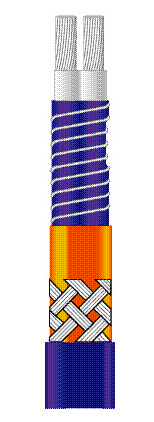

Standard Construction
A. Buss wires. Twin 12 AWG copper buss wires provide reliable, consistent electrical current.
B. Buss wire insulation. 11 mil FEP jacket protects and electrically insulates buss wires.
C. Inner sheath. This insulation jacket holds the two buss wires together and provides the wrapping surface for the nichrome heating wire.
D. Nichrome wire. The nichrome resistance heating wire is the heating component of the cable.
E. Jacket. Flame-retardant insulation jacket is made from FEP material which protects heating cable and assures long service life. This material is also highly corrosion resistant.
F. Metal braid. Plated copper braid covering the jacket provides a positive ground path.
G. Optional fluoropolymer overjacket. FEP jacket provides protection from most aqueous and chemically corrosive solutions. Add suffix “-CT” to model number.

Output		Tinned Copper Braid (-C)		FEP Overcoat (-CT) and Tinned Copper Overbraid		Module Length in (mm)	Max Circuit Length feet (m)
Watts/ Foot	Volts	Model No.	Weight lb.(kg)/ 1000'	Model Number	Weight lb.(kg)/ 1000'	Module Length in (mm)	Max Circuit Length feet (m)
4 4	120 240	CWM4-1C CWM4-2C	96 (43.5) 96 (43.5)	CWM4-1CT CWM4-2CT	110 (49.9) 110 (49.9)	18 (457) 30 (762)	350 (106.6) 700 (213.3)
8 8 8	120 240 480	CWM8-1C CWM8-2C CWM8-4C	96 (43.5) 96 (43.5) 96 (43.5)	CWM8-1CT CWM8-2CT CWM8-4CT	110 (49.9) 110 (49.9) 110 (49.9)	18 (457) 24 (610) 37 (940)	245 (74.6) 475 (144.7) 950 (289.5)
12 12 12	120 240 480	CWM12-1C CWM12-2C CWM12-4C	96 (43.5) 96 (43.5) 96 (43.5)	CWM12-1CT CWM12-2CT CWM12-4CT	110 (49.9) 110 (49.9) 110 (49.9)	12 (305) 24 (610) 30 (762)	200 (60.9) 400 (121.9) 800 (243.8)

Minimum length of heating cable is 25 ft. See Pages B-24 to B-28 for heat cable accessories and controls.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

CWM8-2CT

€18.11

Availability: 5 weeks

Constant wattage heat cable,8 watts/ft, 240 volt, with FEP overcoat and tinned copper overbraid

CWM12-4CT

€18.11

Availability: 5 weeks

Constant wattage heat cable,12 watts/ft, 480 volt, with FEP overcoat and tinned copper overbraid

RTES

€43.80

Availability: 1 week

End seal kit

† All amounts shown in EUR
Note: Steam Cleaning: CWM can withstand 200°C (392°F), 150 psig steam purging of process piping when not energized. Third Party Approvals: See page B-22. Circuit Breaker Selection: To determine the circuit breaker size required divide the Watts/ft (at operating voltage) by the operating voltage. Multiply the result times the total installed cable length in feet. Multiply this result times 1.2 to get the minimum circuit breaker size.

Part Number Builder

Build Your Part Number Below

	(1)		(2)	(3)
CWM		-

Option Descriptions:

(1) Watts/Foot select from:
4 for 4 Watts/Foot
8 for 8 Watts/Foot
12 for 12 Watts/Foot

(2) Code in Part Number select from:
1 for code 1
2 for code 2
4 for code 4

(3) Code in Part Number select from:
C for Tinned Copper Braid
CT for FEP Overcoat and Tinned Copper Overbraid

Note: All combinations may not be valid, check spec sheet for valid part numbers.
