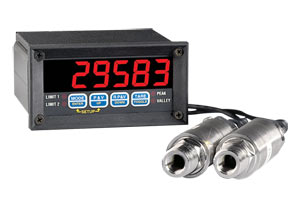

Dual Input Process Meters with Math Functions

DP7800

^€833,13 DP7800

PLACE ORDER

Dual Inputs with Programmable Math Functions
Process Voltage or Current Inputs
Programmable Ranges ± 200 mV to ± 200 V and 4-20 mA
Digital Tare (Zero) up to 50% of Span
Easily Programmed Span, 1000 to 30,000 Counts
Two Setpoints with Relay Closures, Standard
NEMA-4 Rated Bezel with Panel Gasket Seal

Instrumentation for Pressure and Strain Measurements - View related products

Description

SPECIFICATIONS
Accuracy: ±0.01% of reading ±1 count of LSD
Range Programming: Solderless jumpers on rear of unit. Select 200 mV, ±2 V, ±20 V, ±200 V, and 4-20 mA
Conversion Rate: 3/second
Display: 5-digit, seven-segment LED 0.56" (14.3 mm) high
Limit Outputs: Standard dual form "A" relay rated 0.25 A at 28 V
Analog Output (optional): 0-10 Vdc @ 2.5 mV resolution. 0 V and 10 V points are programmable via front panel switches. Maximum drive capability ±2 mA The 4 mA and 20 mA points are programmable via front panel switches. 4-20 mA output, maximum load 600 Ohms
CMV: 1400 V Peak (ac or dc) between analog output ground and ac power line ground
Serial Interface (optional): ASCII RS-232 or RS-485 compatible; format 1 start bit, 8 data bits, 1 stop bit and no parity bits Baud Rates: 9600, 4800, 2400, 1200, 600, 300, 150 and 75 programmable from the front panel
Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature: -25 to 85°C (-12 to 184°F)
Relative Humidity: 0% to 90%, Non-condensing
Power: 115 Vac (+15% -10%) @ 50 mA (47 to 500 Hz) Optional: 230 Vac (+15% -10%) @ 25 mA (47 to 500 Hz) Optional: 9-18 or 18-36 Vdc
Dimensions: 1.97 H x 3.80 W x 4.0" D (50 x 97 x 102 mm) (Rear Connectors add 0.5" to depth)
Panel Cutout: 1 /8 DIN 45 H x 92 mm W (1.77 H x 3.58" W)
Weight: 454 g (1 lb)

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

DP7800

Consult Sales

Availability:

Dual input process voltage or current meter

DP7800-A10

Consult Sales

Availability:

Dual input process voltage or current meter with 0-10 Vdc analog output

DP7800-S2

Consult Sales

Availability:

Dual input process voltage or current meter with RS232 serial communications

† All amounts shown in EUR

Part Number Builder

Build Your Part Number Below

	(1)
DP7800

Option Descriptions:

(1) Options select from:
for no options leave blank
-230VAC for 230 Vac power
-DC9/18 for 9 to 18 Vdc power
-DC18/36 for 18 to 36 Vac power
-S2 for ASCII RS232 serial interface
-S4 for ASCII RS485 serial interface
-AMA for 4 to 20 mA analog output
-A10 for 0 to 10 Vdc analog output

Note: All combinations may not be valid, check spec sheet for valid part numbers.
