Digital Pressure Gauges, Rugged   NOT CE Compliant

DPG120 Series

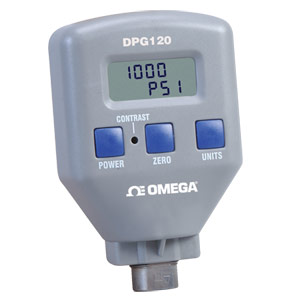

Digital Pressure Gauges, Rugged | DPG120 Series

Digital Pressure Gauges, Rugged

341,64 DPG110

  • Selectable Units of Measure
  • Selectable Relative or Sealed Measurement Reference
  • Stainless Steel Wetted Parts
  • High Accuracy
  • Long Battery Life
  • Auto Shut-Off Feature
Pressure Gauges - View related products

Description

The DPG110 series is no longer CE Compliant so it cannot be sold to EU countries. Please see the DPG-108 for possible alternatives or contact our Sales department.

SPECIFICATIONS
Accuracy: ±0.5% BFSL (includes non-linearity, hysteresis, repeatability)
Pressure Range:
    DPG110: -14 to 100 psi
    DPG120: -14 to 1000 psi
Units of Measure: psi, bar, kg/cm2, atm
Stability (1 Year): ±0.25% FS typical
Overrange Protection: 2x rated pressure
Burst Pressure: 5x or 20,000 psi, whichever is less
Pressure Cycles: >100 million cycles
Operating Temperature Range: 0 to 55ºC
Compensated Temperature Range: 0 to 55ºC
Storage Temperature Range: -40 to 65ºC
Temperature Compensation:
    Zero: <±1.5% FS
    Span: <±1.5% FS
Pressure Sensor Connection: 1/8 FNPT
Update Rate: 3 samples per second
Wetted Parts: Stainless steel
Power: 9 V alkaline battery (included)
Auto Shut-Off: 1 hr
Battery Life: 100 hr continuous operation
All amounts shown in EUR
Note: Comes with complete operator’s manual.
