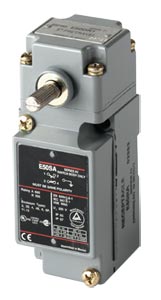

Modular Plug-In Limit Switches

E50 Series

^€379,43 E50ANR1

PLACE ORDER

Easy to Install
High Reliability
Low Maintenance
Modular to Reduced Inventory

Description

E50 Modular Plug-In Limit Switch components are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard FKM gaskets, seals and boots, and a zinc die cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents, and hydraulic fluids found in machine tool, automotive, waste water treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 to 120 Vac/dc LED indicating light versions simplify setup and troubleshooting operations.

SPECIFICATIONS
Environmental Ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
Material of Construction: Zinc die cast
Switch Gasket Material: FKM Universal U.S./DIN Mounting
Dimensions: 30 x 60 mm (1.16 x 2.34")
Conduit Entrance: 1.2 NPT or 20 mm threading
Contact Operation: Snap action over center mechanism
Contact Material: Fine silver
Maximum Frequency of Operation: 8000 operations per hour
Mechanical Life:
    Side Rotary Side: 13,000,000 operations minimum
    Top Push: 10,000,000 operations minimum
Electrical Life:
    Single Pole: 1,000,000 operations typical at full load
    Double Pole: 100,000 operations typical at full load
Ambient Temperature Range—Standard
    Standard without Cable: -10 to 121°C (14 to 250°F)
    Standard with Cable: -10 to 105°C (14 to 221°F)
    Low Temperature without Cable: -40 to 121°C (-40 to 250°F)
    Low Temperature with Cable: -40 to 105°C (-40 to 221°F)
Repeat Accuracy—Standard
    Side Operated: Within 0.0012"
    Top Operated: Within 0.0003"
    Side Rotary: Within 0.0014"
Torque Requirements:
    Switch Body Screws: 25 to 30 lb/in
    Operating Head Screws: 14 to 18 lb/in
Wire Size: Will accept AWG #22 to #12, single or stranded wire

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

E50AL1

€364,17

Availability: 9 weeks

E50SA body, pre-assembled, single pole, 1 N O / 1 N C, side rotary head with low force spring return, no indicating light

E50AM1

€403,79

Availability: 9 weeks

E50SA body, pre-assembled, single pole, 1 N O / 1 N C, side rotary head with maintained 2-position, no indicating light

E50ANR1

€379,43

Availability: 1 week

E50SAN body, pre-assembled, single pole, 1 N O / 1 N C, side rotary head with standard spring return, neon indicating light (not CE)

E50AR1

€324,58

Availability: 9 weeks

E50SA body, pre-assembled, singe pole, 1 N O / 1 N C, side rotary head with standard spring return, no indicating light

E50AT3

€396,19

Availability: 9 weeks

E50SA body, pre-assembled, single pole, 1 N O / 1 N C, top pushbutton head with adjustable spring return, no indicating light

E50BR1

€396,19

Availability: 9 weeks

E50SB body, pre-assembled, double pole, 2 N O / 2 N C, side rotary head with standard spring return, no indicating light

E50NN1

€403,79

Availability: 9 weeks

E50SN body, pre-assembled, neutral position special purpose side rotary head, 5-degree operating travel

E50AR16P

€403,79

Availability: 9 weeks

E50 6P+ version, pre-assembled, single pole, side rotary head with standard spring return, no indicating light

Components

E50DH1

Consult Sales

Availability:

Side pushbutton, maintained

E50DL1

Consult Sales

Availability:

Side rotary, low force spring return (Photo similar to E50DR1)

E50DM1

Consult Sales

Availability:

Side rotary, maintained 2-position (Photo similar to E50DR1)

E50DN1

€136.40

Availability: 1 week

Side rotary, neutral position (Photo similar to E50DR1)

E50DR1

Consult Sales

Availability:

Side rotary, standard spring return

E50DS1

Consult Sales

Availability:

Side pushbutton, spring return

E50DS2

Consult Sales

Availability:

Side pushbutton, adjustable spring return

E50DS3

Consult Sales

Availability:

Side push roller, spring return

E50DT1

Consult Sales

Availability:

Top pushbutton, spring return

E50DT2

Consult Sales

Availability:

Top pushbutton, adjustable spring return

E50DT3

Consult Sales

Availability:

Top push roller, spring return

E50DW1

Consult Sales

Availability:

Standard duty wobble head, spring return

E50SA

€151.63

Availability: 9 weeks

Single pole, 1 N O / 1 N C, no indicating light

E50SAL

€204.19

Availability: 9 weeks

Single pole, 1 N O / 1 N C, LED indicating light

E50SAN

€204.19

Availability: 1 week

Single pole, 1 N O / 1 N C, neon indicating light

E50SB

€196.57

Availability: 9 weeks

Double pole, 2 N O / 2 N C, no indicating light

E50SN

€214.85

Availability: 9 weeks

Neutral position, 15° travel

E50SA6P

€280.38

Availability: 9 weeks

E50 6P+ version switch component, body, single pole, 1 N O / 1 N C, no indicating light

Mounting Adaptor

E50KH3

€60.78

Availability: 1 week

E50 Mounting adaptor for horizontal and vertical adjustment

E50KH10

€27.51

Availability: 9 weeks

E50 mounting adaptor allows E50 to easily replace AB 802M Series

E50KH5

€20.46

Availability: 9 weeks

E50 mounting adaptor plate allows E50 to easily replace SqD 9007 type T, national Acme Type D-1200M, Denison LoxSwitch Model L-100W

Lever Arms

E50KL200

Consult Sales

Availability:

Standard nylatron roller

E50KL355

Consult Sales

Availability:

Standard metal roller

E50KL201

Consult Sales

Availability:

Adjustable nylatron roller

E50KL537

Consult Sales

Availability:

Adjustable nylatron roller

E50KL538

Consult Sales

Availability:

Adjustable metal roller

E50KL443

Consult Sales

Availability:

Adjustable stainless steel roller

E50KL202

€50.72

Availability: 1 week

Adjustable rod, 5.5" length, 0.12" diameter

E50KL220

Consult Sales

Availability:

Adjustable rod, 9" length, 0.19" diameter

E50KL226

Consult Sales

Availability:

Adjustable rod, 12" length, 0.12" diameter

E50KL36

€40.91

Availability: 9 weeks

Clamps for adjustable diameter rods 3.2 mm (0.12")

E50KL421

Consult Sales

Availability:

Stainless steel spring rod, 11.62" length, 0.09" diameter

E50KL556

Consult Sales

Availability:

Spring rod, 12.12" length, 0.25" diameter, nylon

E50KL142

Consult Sales

Availability:

Nylatron loop

† All amounts shown in EUR
Note: Comes with complete instruction sheet.
Ordering Example: (1) E50AL1 Pre-assembled, singe pole, 1 N O / 1 N C, Side rotary head with low force spring return, no indicating light, €364.17
