Liquid Flow Transmitter and Switch

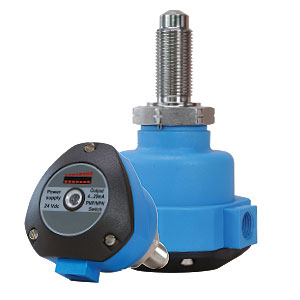

FSW-9000 Series Liquid Flow Trasmitter and Switch

^€957,83 FSW-9212

PLACE ORDER

High Reliability — No Moving Parts
4 to 20 mA, PNP/NPN (Transistor), or Relay Output
Excellent Low Flow Sensitivity
Can Operate in Temperatures up to 120°C (248°F) with Sanitary Option

Variable Area Flow Meters & Switches - View related products

Description

The FSW-9000 Series is a flow switch monitor that measures the velocity of the flow. It is ideal for use in measurement and control liquid applications. The FSW-9000 Series provides two output options: a 4 to 20mA analogue output and a PNP/NPN output. For the 4 to 20 mA output, the electronics’ module converts the signal from the probe to a 4 to 20 mA analogue output, which can be used to indicate flow rate. For the PNP/NPN output, the measured flow rate is compared to the setpoint value selected by the user and the switch changes state once the setpoint value has been achieved.

The FSW-9000 Series microprocessor based electronics and unique self-calibration program gives the flow switch superior temperature compensation, a fast response time (adjustable from 3 to 10 seconds) and increased long term switch point stability. Even in the event of a power failure, the calibration program will store values for maximum and minimum flows for up to 10 years.

A chain of 8 LED’s gives the user a visual indication of the flow rate as well as setpoint status, and one di-chromatic LED indicates switch point status. In addition, if there is a problem with the unit, the 8 LED’s will flash continuously providing troubleshooting information. The conical shape of the sensor’s tip means that the probe can be installed at almost any angle in the pipe and that if the probe is misaligned, accuracy will not be affected. The sensing element and connection of the FSW-9000 Series are made with 316 SS and the standard enclosure is glass-fillednylon. The FSW-9000 Series can be made with a great variety of process connections such as threaded, flange, or hygienic and is also available in an aluminium enclosure for hazardous environments. Intrinsic safety barriers required for explosion proof areas.

The FSW-9000 Series nominal measuring range is 0.04 to 2.0 m/s. The switch can be set to trip at any value in this range. To calculate the velocity for your application, use the following simple formula: V= (1.27 X Q)/D2 Q = Flow rate in metres per second D = Pipe internal diameter in metres V = Fluid velocity in metres per second Please note that the 4 to 20mA option is scaled over 0 to 2.0 m/s.

The FSW-90-R is very similar to the FSW-9000 Series with one main difference: The sensor is separate from the electronics and it does not have an enclosed housing. This gives the FSW-90-R Series the ability to be installed in very small pipes and be remotely controlled by the FSCN-91 relay. The FSW-90-R Series is the ideal solution when there is not a lot of space to install even a compact unit or when there is a need for a mounted relay. In addition, the conical shape of the sensor’s tip allows the probe to be installed at almost any angle in the pipe, and if it is misaligned, accuracy will not be affected. The FSW-90-R is made with 316 SS. FSCN-91 relay can operate with DC or AC supply voltage and provides an analogue 4 to 20mA and SPDT output. The FSCN-91 enclosure is made with ABS and can be mounted on a DIN rail or by using 2 fixing screws.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Accessories

70A-1

€42.60

Availability: 1 week

Continuous tone alarm

TX4-100

€49.97

Availability: In Stock

4-Core 7/0.2 mm screened cable white, red, green & black with drain wire, 30 metres

LP-PS-1524

Consult Sales

Availability:

DIN rail mount 24Vdc power supply. 15W, 0.63 Amp, 25mm wide. Powered by 85 to 260 Vac, 47 to 63 Hz

† All amounts shown in EUR
Note: Comes complete with operator's manual.
