Turbine Meters For Water Totalisation

FTB-4100

Turbine Flowmeters For Water | FTB-4100

Turbine Flowmeters For Water

See All Models Below

1 year warranty CE
  • For Water Flows from 0.15 to 2600 US GPM
  • Scaled Pulse Output Available for Remote Totalization Indication
  • For Hot or Cold Water Applications
  • Up to ±1.5% of Reading Accuracy
Turbine and Paddle Wheel Flowmeters - View related products

Description

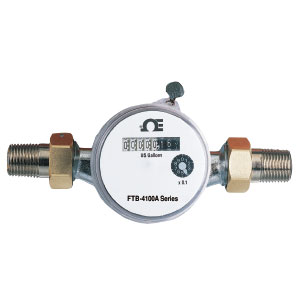

OMEGA’s FTB-4000 flowmeters are highly accurate and feature tamper-resistant, non-resettable totalizers. The large faces are easy to read. Optional reed relay scaled pulse outputs allow for remote totalization (1.8 m of cable included). The pulse output option is factory installed and must be requested at the time of order. All FTB flowmeters feature built-in strainers, trickle flow indication and are shipped complete with locking nuts and coupling pieces.

Specifications
Accuracy: from 10% of cont. to max. flow : ±1.5% of reading; below 10% of cont. flow: ±2% of reading
Power for Pulse Output: 6-16 Vdc
Max. Temp: 90°C
Max. Pressure: 150 psi
Pulse Outputs: Reed Relay: 4100P Series: 1 gal/pulse (for remote totalization only)
Max. Reading (gals): 10 million for 1 /2 " and 3 /4 "; 100 million for 1", 1 1 /4 ", 1 1 /2 "
Wetted Parts: Brass body, stainless steel polyimide (fiberglass), polypropylene, EPDM O-Ring Installation Requirements: 10 pipe diameters upstream, 5 downstream
Mounting: Horizontal or vertical for 1 /2 " and 3 /4 " models, Horizontal Mounting Required for 1", 1 1 /4 ", 1 1 /2 " models.

For complete product specifications see the Related Links section at the bottom of this page.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
FTB-4105A
Consult Sales
Availability:


0.15 MIN USGPM 6.6 CONT 13.2 MAX USGPM 1/2 " MNPT, 200F
FTB-4105A-P
Consult Sales
Availability:


0.15 MIN USGPM 6.6 CONT 13.2 MAX USGPM 1/2 " MNPT, 200F
FTB-4107A-P
288.84
Availability: 2 weeks

0.20 MIN USGPM 11.0 CONT 20.0 MAX USGPM 3/4 " MNPT, 200F
FTB-4110A
Consult Sales
Availability:


0.5 MIN USGPM 26.4 CONT 52.8 MAX GPM 1" USMNPT, Horizontal Mounting Required
FTB-4115A
Consult Sales
Availability:


0.8 MIN USGPM 44 CONT 88 MAX USGPM 1.5" MNPT, Horizontal Mounting Required
Popular Panel Meters for Pulse output models
DPF20-HV-R1-R1
327.30
Availability: 8 weeks

6 digit, 1/8 DIN panel meter for Rate or Total, 85 to 260 Vac powered, with dual relay outputs
All amounts shown in EUR
Note: Units come complete with operator's manual.
