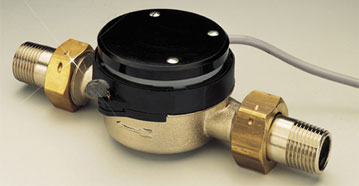

Pulse Output Water Flow Sensors

FTB4605 FTB4607

Water Flow Sensors

See All Models Below

PLACE ORDER

For Water Flows from 0.6 to 75 litres/min
Very Economical
High Turndown Ratio
1.5% of Reading Accuracy

Turbine and Paddle Wheel Flowmeters - View related products

Description

The FTB4600 series of flowmeters are highly accurate and feature a high frequency pulse output suitable for remote flowrate indication or flow totalization. For economy, they have no local indication. The pulse output is compatible with OMEGA’s DPF400 and DPF700 series ratemeter/totalizers.

All flow sensors include built-in strainers, locking nuts, gaskets, coupling pieces, and 1.5 metres of 3 core cable.

SPECIFICATIONS
Accuracy: From 10% of continuous to maximum flow: ±1.5% of rate; below 10% of continuous flow rate: ± 2% of rate
Fluid Temperature Range: 0 to 88°C
Wetted Parts: Nickle Plated Brass body, stainless steel, polyimide (fibreglass), polypropylene, EPDM O-ring
Pressure Drop (at cont. flow rate): 200 mbar
Max. Pressure: 10 barg
Pulse Output: Requires 6-16 Vdc @10 mA max. power; output requires pull-up to positive dc voltage. Includes 1.5 m of cable.
Duty Cycle: 50-50

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Turbine Meters

FTB4605

Consult Sales

Availability:

1/2" Port size, 0.56 min 25 cont. 49 max litres/min, 114mm length, 64 height, 70 width, 0.5 kg, 40 pulses/litre

FTB4607

Consult Sales

Availability:

3 /4" Port size, 0.8 min 42 cont. 75 max litres/min, 140 mm length, 64 height, 70 width, 0.6 kg, 20 pulses/litre

Popular Panel Meters

DPF20-HV-R1-R1

€327.30

Availability: 8 weeks

6 digit, 1/8 DIN panel meter for Rate or Total, 85 to 260 Vac powered, with dual relay outputs

† All amounts shown in EUR
Note: Comes with built-in strainers, locking nuts, gaskets, coupling pieces, 1.5 metre cable, and complete operator’s manual.
