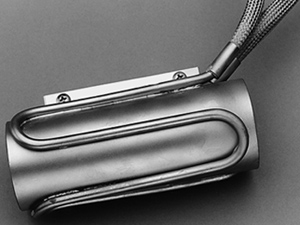

MINERAL INSULATED ONE-PIECE NOZZLE HEATERS

NOZZLE HEATER

^€761,01 HBZ-11152/120V

Reliable, Heavy Duty
Quick Availability
Sheath Temperatures to 1600°F
Nozzle Temperatures to 1000°F
14" Leads Standard

Description

FEATURES
Fast heatup and uniform heat distribution is provided by small diameter tubular element properly located and silver brazed to stainless-steel band. Heater is slipped over nozzle and integral tabs are drawn tight by stainless steel bolts and nuts. Leads are protected by stainless steel braided cable to prevent contamination by overflow of plastic or other freeflowing materials.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.

Watts	Volts	Nozzle Dia. In.(cm)	Length In.(cm)	Model No.	Wt. lbs.(Kg)
HBZ Type 1
275	120	1 1/2(4)	1 1/2 (4)	HBZ-11152	.5 (.2)
150	120	1 3/4 (4)	1 1/2 (4)	HBZ-11151	.5 (.2)
200	120	1 3/4 (4)	1 3/4 (4)	HBZ-11162	.6 (.3)
400	120	2 (5)	2 (5)	HBZ-12204	.7 (.3)
200	120	2 1/8 (5)	2 1/4 (6)	HBZ-2X56	.7 (.3)
400	120	2 1/8 (5)	2 1/4 (6)	HBZ-12224	.8 (.4)
200	120	3 1/2 (9)	1 1/2 (4)	HBZ-3X29	1.0 (.5)
350	240	1 1/2 (4)	1 1/2 (4)	HBZ-1X70	.5 (.2)
200	240	2 1/2 (6)	1 (3)	HBZ-12102	.5 (.2)
HBZ Type 2
275	120	1 1/4(3)	3 (8)	HBZ-21302	1.0 (.5)
500	120	1 1/2 (4)	5 (13)	HBZ-2105	1.2 (.5)
600	120	2 1/8 (5)	3 3/4 (10)	HBZ-2X88	1.3 (.6)
800	120	2 1/8 (5)	6 (15)	HBZ-2208	1.5 (.7)
800	120	3 1/4 (8)	71/2 (19)	HBZ-2308	2.0 (.9)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

HBZ Type 1

HBZ-11152/120V

€761.01

Availability: 8 weeks

Bend heater, 275 W 120 V

HBZ-12224/120V

€874.77

Availability: 8 weeks

Bend heater, 400 W 120 V

HBZ-1X70/240V

€761.01

Availability: 8 weeks

Bend heater, 350 W 240 V

HBZ Type 2

HBZ-2105/120V

€1,161.00

Availability: 8 weeks

Bend heater, 500 W 120 V

HBZ-2208/120V

€1,066.03

Availability: 8 weeks

Bend heater, 800 W 120 V

Order By Part Number

Part Number

Qty

Part Number

Qty

† All amounts shown in EUR
Note: Thermocouple holes, plugs and extended leadwire and braid are available.Consult with temperature engineering about ordering these options.
