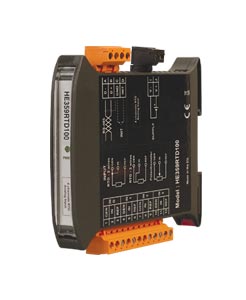

Universal Remote I/O Modules
Remote I/O for RS485 Bus and Programmable Logic Controllers (PLCs)

HE359 Series

Universal Remote I/O Modules
Remote I/O for RS485 Bus and Programmable Logic Controllers (PLCs) | HE359 Series

285,85 HE359DIQ512

CE
  • Connects Via 2-Wire RS485 MODBUS (RTU or ASCII) to Any Programmable Logic Controller (PLC)
  • A Total of 31 I/O Modules May be Daisy-Chained on a Single RS485 Link
  • DIN Rail Mountable
  • Optical Isolation
  • Response Time Suitable For Most Analogue Applications
  • Cost Effective Addition Per Point
  • Fits in the Smallest Panels: 17.5 x 100 x 120 mm
  • 12 Different I/O Modules Are Available to Choose From Including: DC In, Relay Out, Analogue In, Analogue Out, RTD, Thermocouple

Description

Remote I/O, or distributed I/O, offers several advantages over the traditional local I/O found on a Programmable Logic Controller (PLC). First, it allows you to locate the I/O modules close to the process that is being monitored or controlled. This greatly improves noise immunity, as the weak sensor signals are converted to digital signals before being transmitted long distances through a noisy plant environment. OMEGA universal remote I/O modules use a simple 2-wire RS485 link using MODBUS RTU/ASCII protocol, which is supported by most programmable logic controllers. A second advantage is that remote I/O greatly reduces the wiring at the main control panel, saving time and money when repairs and upgrades are necessary. Adding additional sensors and control signals is as easy as connecting to the already installed RS485 link and modifying the PLC program to utilize the new I/O. In addition, remote I/O allows you to expand your process control system beyond the local I/O capabilities of your PLC. You can add thermocouple, RTD, pressure, and flow sensors to a PLC that doesn’t support these types of inputs. With remote I/O, your process application is no longer dependent on your controller choice.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
HE359DIQ512
285,85
Availability: 7 weeks

I/O module, 4 DC inputs (12/24 Vdc), 4 relay outputs (250 Vac, 30 Vdc, 2A max)
HE359DIM610
347,99
Availability: 7 weeks

I/O module, 12 DC inputs (12/24 Vdc)
HE359ADC107
347,99
Availability: 7 weeks

I/O module, 4 analogue inputs, voltage (±10 Vdc), 1 mV resolution
HE359ADC120
361,37
Availability: 1 week

I/O module, 4 analogue inputs, current (4 to 20 mA), 1uA resolution
HE359ADC207
553,05
Availability: 7 weeks

I/O module, 8 analogue inputs, voltage (±10 Vdc), 1 mV resolution
HE359ADC220
553,05
Availability: 7 weeks

I/O module, 8 analogue inputs, current (4 to 20 mA), 1uA resolution
HE359RTD100
417,64
Availability: 9 weeks

I/O module, 4 RTD inputs (Pt-100, Ni-100, Pt-1000, Ni-1000) or resistance inputs (0 to 2000Ω), 0.1°C resolution
HE359THM100
403,91
Availability: 7 weeks

I/O module, 4 thermocouple inputs (Types J, K, R, S, B, E, T, N) or millivolt inputs (±1000 mV, max), 0.1°C resolution
HE359THM200
668,21
Availability: 7 weeks

I/O module, 8 thermocouple inputs (Types J, K, R, S, B, E, T, N) or millivolt inputs (±1000 mV, max), 0.1°C resolution
HE359DAC007
410,13
Availability: 7 weeks

I/O module, 2 analogue outputs, selectable between voltage (0 to 10 Vdc) and current (0 to 20 mA), 1 mV/1 uA resolution
HE359DAC107
639,90
Availability: 1 week

I/O module, 4 analogue outputs, selectable between voltage (0 to 10 Vdc) and current (0 to 20 mA), 1 mV/1 µA resolution
HE359DAC201
789,18
Availability: 1 week

I/O module, 8 analogue outputs, voltage (0 to 10 Vdc), 1 mV resolution
Accessories
XBANS3575P
€15.68
Availability: 1 week

DIN rail, 35 x 7.5 mm x 2 m slotted
XBANS3575U
Consult Sales
Availability:


DIN rail, 35 x 7.5 mm x 2 m solid
XBANS3515P
Consult Sales
Availability:


DIN rail, 35 x 15 mm x 2 m slotted
XBANS3515U
€28.75
Availability: 1 week

DIN rail, 35 x 15 mm x 2 m solid
XBANS3575PL
€25.75
Availability: 1 week

DIN rail, 35 x 7.5 mm x 2 m slotted, aluminium
ELC-PS01
Consult Sales
Availability:


DIN rail power supply, 24 Vdc, 1 A
All amounts shown in EUR
