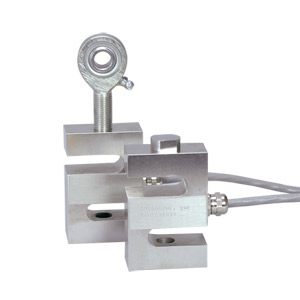

S-Beam Load Cell
High Accuracy, Economical Price

LC101 and LC111 Series

Stainless Steel S Beam Load Cell - Order online | LC101 and LC111 Series

Stainless Steel S Beam Load Cell - Order online

€513,39 LC101-25

PLACE ORDER
  • All Stainless Steel S beam load cell for Harsh Industrial Applications
  • 0.25% Interchangeable for Multiple Load Cell Applications
  • Calibrated in Tension
  • 5-Point Calibration Included
  • Load Buttons & Rod Ends Available
Load Cells, Force Sensors and Torque Transducers - View related products

Description

SPECIFICATIONS

Excitation: 10 Vdc, 15 Vdc max
Output: 3 mV/V ±.0075 mV/V
Linearity: ±0.03% FSO (0.1% 40 K)
Hysteresis: ±0.02% FSO(0.1% 40 K)
Repeatability: ±0.01% FSO (0.05% 40 K)
Zero Balance: ±1% FSO
Operating Temp Range: -40 to 93°C (-40 to 200°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:Zero: 0.002% FSO/°C Span: 0.002%FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 350 ±10 Ohms
Output Resistance: 350 ±10 Ohms
Full Scale Deflection: 0.010 to 0.020"
Construction: 17-4 PH Stainless Steel
Electrical: LC101: up to 200 lb = 30 ft 24 AWG; 250-2000 lb = 30 ft 20 AWG; 3000 lb and up= 15 ft 20 AWG 4-conductor shielded cable,
LC111:up to 200 lbs 4 pin connector mating connector: PT06F8-4S-R (not included) >200 lbs, 6 pin connector, mating connector: PT06F10-6S-R (not included)

The LC101 series is also available in metric configurations, with ranges from 0-10 to 0-10,000 kg and metric threads. Please see the LCM101 for complete details, or contact our Technical Sales department for more information..
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Stainless Steel S beam Load Cell with Cable Connection
LC101-25
€513.39
Availability: 1 week

±25 lb (±11 kgf) force range
LC101-50
€532.43
Availability: 1 week

±50 lb (±23 kgf) force range
LC101-100
€513.39
Availability: 18 weeks

±100 lb (±45 kgf) force range
LC101-200
€561.74
Availability: 1 week

±200 lb (±91 kgf) force range
LC101-250
€513.39
Availability: 1 week

±250 lb (±114 kgf) force range
LC101-500
€513.39
Availability: 18 weeks

±500 lb (±227 kgf) force range
LC101-1K
€533.39
Availability: 17 weeks

±1000 lb (±455 kgf) force range
LC101-2K
€503.98
Availability: 17 weeks

±2000 lb (±909 kgf) force range
LC101-2.5K
€513.39
Availability: 17 weeks

±2500 lb (±1134 kgf) force range
LC101-3K
€622.54
Availability: 1 week

±3000 lb (±1361 kgf) force range
LC101-5K
€732.27
Availability: 18 weeks

±5000 lb (±2269 kgf) force range
LC101-10K
€1,316.97
Availability: 19 weeks

±10,000 lb (±4537 kgf) force range
LC101-20K
€1,107.65
Availability: 1 week

±20,000 lb (±9074 kgf) force range
LC101-25K
€1,380.00
Availability: 17 weeks

±25,000 lb (±11,343 kgf) force range
LC101-30K
€1,388.00
Availability: 9 weeks

±30,000 lb (±13,612 kgf) force range
LC101-40K
€1,415.50
Availability: 6 weeks

±40,000 lb (±18,149 kgf) force range
Stainless Steel S beam Load Cell with Twist Lock Connector
LC111-25
€520.43
Availability: 19 weeks

±25 lb (±11 kgf) force range
LC111-50
€529.50
Availability: 19 weeks

±50 lb (±23 kgf) force range
LC111-100
€529.50
Availability: 19 weeks

±100 lb (±45 kgf) force range
LC111-200
€529.50
Availability: 19 weeks

±200 lb (±91 kgf) force range
LC111-250
€495.47
Availability: 19 weeks

±250 lb (±114 kgf) force range
LC111-500
€561.74
Availability: 19 weeks

±500 lb (±227 kgf) force range
LC111-1K
€529.50
Availability: 19 weeks

±1000 lb (±455 kgf) force range
LC111-2K
€523.32
Availability: 19 weeks

±2000 lb (±909 kgf) force range
LC111-3K
€611.85
Availability: 19 weeks

±3000 lb (±1361 kgf) force range
LC111-5K
€755.24
Availability: 19 weeks

±5000 lb (±2269 kgf) force range
LC111-10K
€1,359.00
Availability: 19 weeks

±10,000 lb (±4537 kgf) force range
LC111-20K
€1,107.65
Availability: 19 weeks

±20,000 lb (±9074 kgf) force range
LC111-25K
€1,419.00
Availability: 19 weeks

±25,000 lb (±11,343 kgf) force range
LC111-30K
€1,357.00
Availability: 19 weeks

±30,000 lb (±13,612 kgf) force range
ACCESSORIES
PT06F8-4S-R
€36.55
Availability: 1 week

Mating Connector for LC111 ranges <=200 lb (not included)
PT06F10-6S-R
€38.61
Availability: In Stock

Mating Connector for LC111 ranges >=250 lbc (not included)
LBC-014
€74.76
Availability: 1 week

1/4-28 T'hd Load Button
LBC-012
€99.11
Availability: 1 week

1/2-20 T'hd Load Button
LBC-058
€118.42
Availability: 1 week

5/8-18 T'hd Load Button
LBC-100
€133.98
Availability: In Stock

1-14 T'hd Load Button
LBC-114
€149.21
Availability: 1 week

1-1/4-12 T'hd Load Button
COMPATIBLE METERS
DP25B-S-230
€420.74
Availability: 1 week

4-digit precision Strain Meter for use with mV/V output models. 230Vac powered
DP41-S-230
€894.17
Availability: 6 weeks

6-digit high accuracy (0.005%) Strain Meter for use with mV/V output models. 230Vac powered
DP400S
€547.67
Availability: 1 week

High Speed Panel Meter with Strain-Gauge Input
† All amounts shown in EUR
 Note: Mating Connector not included with LC111 models. See accessories above

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Cable or Connector Style select from:
101 for Cable Style
111 for Connector Style

(2) select from:
20 for 20 lb range
25 for 25 lb range
50 for 50 lb range
75 for 75 lb range
100 for 100 lb range
150 for 150 lb range
200 for 200 lb range
250 for 250 lb range
500 for 500 lb range
750 for 750 lb range
1K for 1000 lb range
1.2K for 1200 lb range
1.5K for 1500 lb range
2K for 2000 lb range
2.5K for 2500 lb range
3K for 3000 lb range
4K for 4000 lb range
5K for 5000 lb range
10K for 10000 lb range
15K for 15000 lb range
20K for 20000 lb range
25K for 25000 lb range
30K for 30000 lb range
40K for 40000 lb range
Note: All combinations may not be valid, check spec sheet for valid part numbers.
