Miniature Load Cells
2" Diameter, Dual Stud Mount Style

LC203 and LC213 Series

^€888,93 LC203-25

PLACE ORDER

High Accuracy
1% Interchangeability for Scale Applications
Hermetically Sealed
Miniature Package for Test Stands and Difficult Locations
Rugged, Heavy Duty Construction
5-Point Calibration

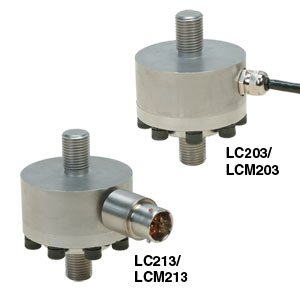

LC203 Cable Style, LC213 Connector Style

Load Cells, Force Sensors and Torque Transducers - View related products

Description

More information about how a load cell works in this link.

OMEGA’s LC203 Series is a high accuracy, miniature, low profile industrial load cell. It is supplied with a stud at each end for easy in-line mounting. The tough, corrosion resistant steel construction and high accuracy strain gauges make them suitable for most industrial weighing applications.

The LC203 is also available in metric configurations, with ranges from 0-100 to 0-50,000 N and metric threads. Please see the LCM203 for complete details, or contact our Sales department for more information.

SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V ±1%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm (0.001 to 0.003")
Protection Class: IP65
Operating Temperature Range: -46 to 107°C (-50 to 225°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.006% FSO/°C
Span: 0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 3 metres of 4-core PVC insulated, screened cable
LC213/LCM213 Mating Connector: PT06F10-6S-R, sold separately

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Tension & Compression Load Cell with 3 m (10 ft) Cable

LC203-25

€888.93

Availability: 1 week

± 25 lb (±11 kg) Capacity

LC203-50

€888.93

Availability: 1 week

± 50 lb (± 23 kg) Capacity

LC203-100

€846.31

Availability: 5 weeks

± 100 lb (± 45 kg) Capacity

LC203-200

€846.31

Availability: 1 week

± 200 lb (± 91 kg) Capacity

LC203-300

€888.93

Availability: 5 weeks

± 300 lb (± 136 kg) Capacity

LC203-500

€846.28

Availability: 1 week

± 500 lb (± 227 kg) Capacity

LC203-1K

€846.29

Availability: 1 week

± 1,000 lb (± 455 kg) Capacity

LC203-2K

€893.85

Availability: 5 weeks

± 2,000 lb (± 909 kg) Capacity

LC203-2.5K

€888.93

Availability: 9 weeks

± 2,500 lb (± 1134 kg) Capacity

LC203-5K

€893.85

Availability: 5 weeks

± 5,000 lb (± 2269 kg) Capacity

LC203-8K

€888.93

Availability: 5 weeks

± 8,000 lb (± 3630 kg) Capacity

LC203-10K

€846.31

Availability: 7 weeks

± 10,000 lb (± 4537 kg) Capacity

Tension & Compression Load Cell with Twist Lock Connector - Mating connector sold separately

LC213-25

€898.25

Availability: 9 weeks

± 25 lb (±11 kg) Capacity

LC213-50

€898.25

Availability: 1 week

± 50 lb (± 23 kg) Capacity

LC213-100

€903.22

Availability: 5 weeks

± 100 lb (± 45 kg) Capacity

LC213-200

€898.25

Availability: 9 weeks

± 200 lb (± 91 kg) Capacity

LC213-300

€898.25

Availability: 9 weeks

± 300 lb (± 136 kg) Capacity

LC213-500

€898.25

Availability: 9 weeks

± 500 lb (± 227 kg) Capacity

LC213-1K

€855.16

Availability: 5 weeks

± 1,000 lb (± 455 kg) Capacity

LC213-2K

€898.25

Availability: 1 week

± 2,000 lb (± 909 kg) Capacity

LC213-2.5K

€903.22

Availability: 1 week

± 2,500 lb (± 1134 kg) Capacity

LC213-5K

€903.22

Availability: 5 weeks

± 5,000 lb (± 2269 kg) Capacity

LC213-8K

€898.25

Availability: 9 weeks

± 8,000 lb (± 3630 kg) Capacity

LC213-10K

€903.22

Availability: 5 weeks

± 10,000 lb (± 4537 kg) Capacity

Accessories and Compatible Meters

PT06F10-6S-R

€38.61

Availability: In Stock

Mating connector for LC213

REC-012F

€51.00

Availability: 1 week

Swivel Rod End for all ranges

DP25B-S-230

€420.74

Availability: 1 week

4-Digit strain meter with excitation voltage, 230VAC powered

DP41-S-230

€894.17

Availability: 6 weeks

6-Digit high accuracy strain meter with excitation voltage, 230VAC powered

† All amounts shown in EUR
Note: All LC203 Series load cells include a 5-point NIST traceable calibration certificate.
LC213 Mating Connector: PT06F10-6S-R (not included)
Ordering Example: (1) LC203-2K +/- 2,000 lb capacity load cell, €893.85 plus (1) LC203-5K +/- 5,000 lb capacity load cell, €893.85, €893.85 + 893.85 = €1,787.70

Part Number Builder

Build Your Part Number Below

	(1)		(2)
LC		-

Option Descriptions:

(1) Cable or Connector Style select from:
203 for Cable Style
213 for Connector Style

(2) select from:
25 for 25 lb range
50 for 50 lb range
100 for 100 lb range
200 for 200 lb range
300 for 300 lb range
350 for 350 lb range
400 for 400 lb range
500 for 500 lb range
750 for 750 lb range
1K for 1000 lb range
1.5K for 1500 lb range
2K for 2000 lb range
2.5K for 2500 lb range
5K for 5000 lb range
8K for 8000 lb range
10K for 10000 lb range

Note: All combinations may not be valid, check spec sheet for valid part numbers.
