Low Capacity Tension Link Load Cells
Internal Thread Design

LC701/LC711

See All Models Below

PLACE ORDER

All Stainless Steel Construction
Accuracy 0.15%
Rugged Design for Industrial Applications
5 Point Calibration with 59 kOhm Shunt Cal Data

Load Cells, Force Sensors and Torque Transducers - View related products

Description

This item is being discontinued.

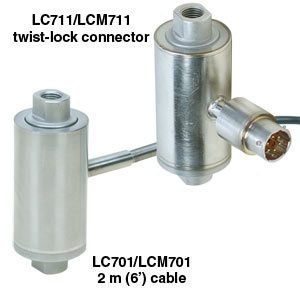

These stainless steel load cells are ideal for measuring in-line tension forces. Applications vary from cables on cranes, support rods in architectural designs, engine test beds, to industrial weighing applications. The LC701 Tension Link has a 6 ft. (2 m) cable while the LC711 has an integral MS style connector.

The LC701 and LC711 are also available in metric configurations, with ranges from 0-50 to 0-1000 kgf and metric threads. Please see the LCM701 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Output: 3 mV/V ±0.25% FSO
Excitation: 10 Vdc (15V max)
Linearity:
   >100 lb: ±0.10% FSO
   ≤100 lb: ±0.20% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1.0% FSO
Operating Temp. Range: -46 to 121°C (-50 to 250°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.0045% FSO/°C
   Span: ±0.007% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω
Full Scale Deflection: 0.025 to 0.102 mm (0.001 to 0.004")
Protection?Class: IP65
Construction: Stainless steel
Electrical:
   LC701/LCM701: 1.8 m (6') insulated 4-conductor shielded cable
   LC711/LCM711: DT02H-10-6P integral connector
Mating connector, LC711/LCM711: PT06F10-6S, sold separately
Weight: 0.45 kg (1 lb)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

LC701 CABLE STYLE

LC701-100

Consult Sales

Availability:

Cable style tension link load cell, 0-100 lb capacity

LC701-250

Consult Sales

Availability:

Cable style tension link load cell, 0-250 lb capacity

LC701-750

Consult Sales

Availability:

Cable style tension link load cell, 0-750 lb capacity

LC701-1K

Consult Sales

Availability:

Cable style tension link load cell, 0-1,000 lb capacity

LC701-2K

Consult Sales

Availability:

Cable style tension link load cell, 0-2,000 lb capacity

LC711 CONNECTOR STYLE

LC711-100

Consult Sales

Availability:

Connector style tension link load cell, 0-100 lb capacity

LC711-250

€690.82

Availability: 1 week

Connector style tension link load cell, 0-250 lb capacity

LC711-750

Consult Sales

Availability:

Connector style tension link load cell, 0-750 lb capacity

LC711-1K

Consult Sales

Availability:

Connector style tension link load cell, 0-1,000 lb capacity

LC711-2K

Consult Sales

Availability:

Connector style tension link load cell, 0-2,000 lb capacity

ACCESSORIES

PT06F10-6S

€40.78

Availability: In Stock

Mating connector for LC711, sold separately

CA-6PC24-3-015

€159.02

Availability: 6 weeks

15 foot connector/cable assembly for LC711 series

COMPATIBLE METERS

DP25B-S

€420.74

Availability: 1 week

4-Digit strain meter with excitation

DP41-S

€910.63

Availability: 6 weeks

6-Digit strain meter with excitation

† All amounts shown in EUR
Note: All LC701/LC711 series load cells include 5 point NIST traceable calibration certificate. Mating connector for LC711 sold separately, part number PT06F10-6S, $26.50.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)

Part Number Builder

Build Your Part Number Below

	(1)		(2)
LC		-

Option Descriptions:

(1) Cable or Connector Style select from:
701 for Cable Style
711 for Connector Style

(2) select from:
100 for 100 lb range
250 for 250 lb range
750 for 750 lb range
1K for 1000 lb range
2K for 2000 lb range

Note: All combinations may not be valid, check spec sheet for valid part numbers.
