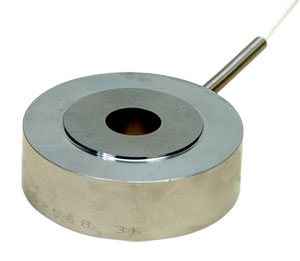

Compact Through-Hole Load Cells, 2.00 Inch O.D.

LC8200

LC8200 Series Compact Through-Hole Load Cells

^€745,81 LC8200-500-250

PLACE ORDER

Low Profile Through-Hole Load Cells
All Stainless Steel Construction
Rugged Industrial Design

Load Cells, Force Sensors and Torque Transducers - View related products

Description

SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15 V max)
Accuracy Class: ±0.5% FSO
Linearity: ±0.5% FSO
Repeatability: ±0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp. Range: -54 to 121°C (-65 to 250°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.020% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±5 Ohms
Full Scale Deflection: 0.003" nominal
Construction: 17-4 PH Stainless Steel Electrical: 5 ft (1.5 m) 4-conductor shielded PTFE cable

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

0.125" ID Through Hole Load Cell, 2" OD

LC8200-125-5

€769.20

Availability: 9 weeks

0-5 lb (0-2.3 kgf) capacity

LC8200-125-10

€769.20

Availability: 9 weeks

0-10 lb (0-4.5 kgf) capacity

LC8200-125-25

€769.20

Availability: 9 weeks

0-25 lb (0-11 kgf) capacity

LC8200-125-50

€769.20

Availability: 9 weeks

0-50 lb (0-23 kgf) capacity

LC8200-125-100

€769.20

Availability: 9 weeks

0-100 lb (0-45 kgf) capacity

0.250" ID Through Hole Load Cell, 2" OD

LC8200-250-3K

€745.81

Availability: 11 weeks

0-3,000 lb (0-1361 kgf) capacity

LC8200-250-5K

€745.81

Availability: 11 weeks

0-5,000 lb (0-2269 kgf) capacity

0.375" ID Through Hole Load Cell, 2" OD

LC8200-375-25

Consult Sales

Availability:

0-25 lb (0-11 kgf) capacity

LC8200-375-7.5K

€769.20

Availability: 9 weeks

0-7,500 lb (0-3403 kgf) capacity

LC8200-375-10K

€769.20

Availability: 9 weeks

0-10,000 lb (0-4537 kgf) capacity

0.50" ID Through Hole Load Cell, 2" OD

LC8200-500-3K

€745.81

Availability: 7 weeks

0-3,000 lb (0-1361 kgf) capacity

LC8200-500-5K

€745.81

Availability: 11 weeks

0-5,000 lb (0-2269 kgf) capacity

LC8200-500-10K

€745.81

Availability: 1 week

0-10,000 lb (0-4537 kgf) capacity

0.625" ID Through Hole Load Cell, 2" OD

LC8200-625-25

€745.81

Availability: 9 weeks

0-25 lb (0-11 kgf) capacity

LC8200-625-50

€732.12

Availability: 5 weeks

0-50 lb (0-23 kgf) capacity

LC8200-625-250

€816.03

Availability: 9 weeks

0-250 lb (0-114 kgf) capacity

LC8200-625-500

€745.81

Availability: 10 weeks

0-500 lb (0-227 kgf) capacity

LC8200-625-1K

€745.81

Availability: 5 weeks

0-1,000 lb (0-455 kgf) capacity

0.875" ID Through Hole Load Cell, 2" OD

LC8200-875-3K

€745.81

Availability: 1 week

0-3,000 lb (0-1361 kgf) capacity

1.00" ID Through Hole Load Cell, 2" OD

LC8200-1.00-500

€745.81

Availability: 11 weeks

0-500 lb (0-227 kgf) capacity

LC8200-1.00-1K

€732.12

Availability: 9 weeks

0-1,000 lb (0-455 kgf) capacity

LC8200-1.00-2K

€745.81

Availability: 7 weeks

0-2,000 lb (0-909 kgf) capacity

† All amounts shown in EUR
Note: All LC8200 series load cells include a NIST traceable calibration certificate.

Part Number Builder

Build Your Part Number Below

	(1)		(2)
LC8200-		-

Option Descriptions:

(1) Inside Diameter select from:
125 for 0.125 inch ID
188 for 0.188 inch ID
250 for 0.250 inch ID
375 for 0.375 inch ID
500 for 0.500 inch ID
625 for 0.625 inch ID
750 for 0.750 inch ID
875 for 0.875 inch ID
1.00 for 1.00 inch ID

(2) Load Range select from:
5 for 0-5 lb range
10 for 0-10 lb range
25 for 0-25 lb range
50 for 0-50 lb range
100 for 0-100 lb range
250 for 0-250 lb range
500 for 0-500 lb range
1K for 0-1000 lb range
2K for 0-2000 lb range
3K for 0-3000 lb range
5K for 0-5000 lb range
7.5K for 0-7500 lb range
10K for 0-10000 lb range

Note: All combinations may not be valid, check spec sheet for valid part numbers.
