Miniature Load Cell
Industrial Compression Load Cell to 50,000 LB

LCGD Series

Miniature Industrial Compression Load Cell

^€885,38 LCGD-100

PLACE ORDER

5-Point Traceable Calibration Supplied
High Accuracy
Low Profile
Miniature Size

Load Cells, Force Sensors and Torque Transducers - View related products

Description

Click on this link if you need more information about load cell.

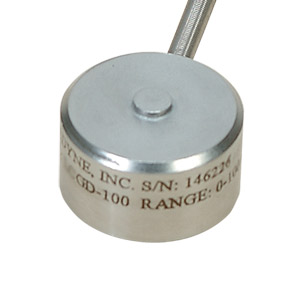

The LCGD Series miniature low profile load cells are compression load cells with excellent long term stability. An all stainless steel construction assures reliability in severe industrial environments and a 5-point NIST traceable calibration is included with each load cell. These units are designed to operate by mounting on a flat surface, and they have a load button machined as an integral part of the basic load cell.

The LCGD is also available in metric configurations, with ranges from 0-100 N to 0-200kN. Please see the LCMGD for complete details, or contact our Sales department for more information..

SPECIFICATIONS

Excitation: 10 Vdc
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50% 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.20% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects:
Span: ±0.018% of Rdg/°C;
Zero: ±0.009% of FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 Ohms minimum
Construction: Stainless Steel
Electrical Connection: 1.5 metre screened Cable

Dimensions
LCMGD load cell dimensions

Capacity (lb)	Dimensions (mm)
Capacity (lb)	D1	D2	H	L	A	B	C
25 to 100	25	5.3	16	1.3	#4-40 UNC	4.8	19.1
250 to 2,000	32	8.1	10	1.8	#6-32 UNC	6.4	25.4
5,000 to 10,000	38	11	16	2.0	#6-32 UNC	6.4	31.8
15,000 to 30,000	51	15	25	3.0	#6-32 UNC	6.4	41.3
50,000	76	20	38	4.6	#6-32 UNC	6.35	60.3

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

LCGD-25

€885,38

Availability: 1 week

0 - 25 LB (0-111 N) capacity Load Cell

LCGD-50

€885,38

Availability: 6 weeks

0 - 50 LB (0-222 N) capacity Load Cell

LCGD-100

€885,38

Availability: 1 week

0 - 100 LB (0-445 N) capacity Load Cell

LCGD-250

€747,43

Availability: 1 week

0 - 250 LB (0-1112 N) capacity Load Cell

LCGD-500

€694,75

Availability: 1 week

0 - 500 LB (0-2224 ) capacity Load Cell

LCGD-1K

€694,75

Availability: 5 weeks

0 - 1,000 LB (0-4448 N) capacity Load Cell

LCGD-2K

€694,75

Availability: 1 week

0 - 2,000 LB (0-8897 N) capacity Load Cell

LCGD-5K

€800,09

Availability: 6 weeks

0 - 5,000 LB (0-22,242 N) capacity Load Cell

LCGD-10K

€800,09

Availability: 1 week

0 - 10,000 LB (0-44,484 N) capacity Load Cell

LCGD-15K

€997,36

Availability: 9 weeks

0 - 15,000 LB (0-66,726 N) capacity Load Cell

LCGD-20K

€944,31

Availability: 11 weeks

0 - 20,000 LB (0-88,968 N) capacity Load Cell

LCGD-30K

€944,28

Availability: 5 weeks

0 - 30,000 LB (0-133,452 N) capacity Load Cell

LCGD-50K

€1.048,00

Availability: 1 week

0 - 50,000 LB (0-222,420 N)capacity Load Cell

Compatible Meters/Amplifiers

DP25B-S-230

€420.74

Availability: 1 week

4-Digit strain meter with excitation, 230VAC

DP41-S-230

€894.17

Availability: 6 weeks

6-Digit high accuracy strain meter with excitation, 230VAC

TXDIN1600S

€207.78

Availability: In Stock

Load Cell Amplifier with mA and VDC outputs, Din Rail Mounted

† All amounts shown in EUR
Note: Comes complete with 5-point NIST traceable calibration and 59 kΩ shunt data
Ordering Example: (1) LCGD-25 0 -25 lb capacity load cell, €885.38 plus (1) LCGD-250 0 -250 lb capacity load cell, €747.43, €885.38 + 747.43 = €1,632.81
