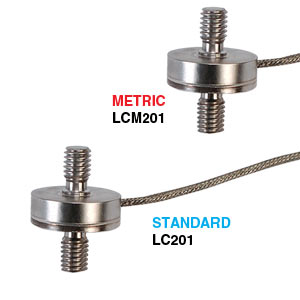

Subminiature Compression & Tension Load Cells, 19mm Diameter, ±100 to ±500 Newton

LCM201 Series

miniature Compression & Tension Load Cells | LCM201 Series

miniature Compression & Tension Load Cells

753,68 LCM201-100N

  • Miniature compresion and tension load cell: main body only 19 mm Diameter
  • Metric Dual M6x1 Mounting Studs for Easy Installation
  • Imperial Dual 1/4-28 UNF Mounting Studs for Easy Installation as an alternative
  • 5-Point Calibration Provided
Load Cells, Force Sensors and Torque Transducers - View related products

Description

Find how a load cell.works on this link.

The miniature compression and tension load cells of the LCM201 Series are designed for the demanding environment of industrial automation and robotics. With a main body diameter of only 19 mm and all stainless steel construction, it can fit into small systems and survive harsh environments. The LCM201 delivers high accuracy and long term reliability in a subminiature package.

SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±1.0% FSO (linearity, hysteresis and repeatability combined)
Zero Balance: ±2% FSO
Full Scale Deflection: 0.025 to 0.075 mm
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects: Zero: 0.018% FSO/°C Span: 0.018% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±10 Ohms
Construction: Stainless Steel
Electrical:1.5 m of 4-core screened cable with compensation board
Protection Class: IP54


Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Metric ranged load cells with M6 x 1.0 threaded studs

LCM201-100N
753.68
Availability: 16 weeks

Subminiature compression and tension load cell with ± 100 Newton range

LCM201-200N
753.68
Availability: In Stock

Subminiature compression and tension load cell with ± 200 Newton range

LCM201-300N
753.68
Availability: In Stock

Subminiature compression and tension load cell with ± 300 Newton range

LCM201-500N
753.68
Availability: 1 week

Subminiature compression and tension load cell with ± 500 Newton range
Rod ends for metric load cells, with M6 x 1.0 female thread
Imperial ranged load cells with 1/4-28 UNF threaded studs
Click to expand/minimize a list of what others bought with theLC201-25
LC201-25
753.68
Availability: 1 week

mini compression and tension load cell, ± 25 lb range

LC201-50
753.68
Availability: 16 weeks

mini compression and tension load cell, ± 50 lb range

LC201-75
796.00
Availability: 1 week

mini compression and tension load cell, ± 75 lb range

LC201-100
753.68
Availability: 16 weeks

mini compression and tension load cell, ± 100 lb range
Click to expand/minimize a list of what others bought with theLC201-300
LC201-300
753.68
Availability: 16 weeks

mini compression and tension load cell, ± 300 lb range
Rod ends for imperial load cells, with 1/4-28 UNF female thread

REC-014F
€25.65
Availability: 1 week

Rod end with 1/4-28 UNF female thread
Accessories

DP25B-S-230
€420.74
Availability: 7 weeks

4 Digit 1/8DIN panel meter for load cells, with built-in excitation supply. 230Vac powered
Click to expand/minimize a list of what others bought with theDP25B-S
DP25B-S
€420.74
Availability: 2 weeks

4 Digit 1/8DIN panel meter for load cells, with built-in excitation supply. 115Vac powered

TXDIN1600S
€207.78
Availability: In Stock

DIN Rail Mounted Signal Conditioner/Transmitter with Excitation & Remote Tare Input. 10-48 Vdc powered
All amounts shown in EUR
Note: All LCM201 load cells are calibrated in tension and include a 5-Point calibration certificate at 0%, 50%, 100%, 50%, 0% of full scale.
