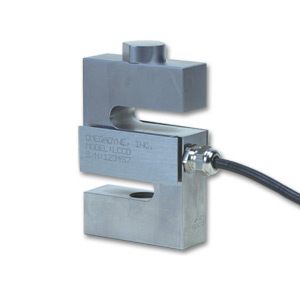

High Performance Metric S Beam Load Cells Environmentally Protected

LCMCD Series

Environmentally Protected Load Cells

See All Models Below

PLACE ORDER

Environmentally Protected to IP67
All Stainless Steel for Industrial Environments
5 Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Provided
Tension Calibration Standard
0.25% Interchangeability
Premium Temperature Compensation
Rod Ends and Load Buttons Available

Load Cells, Force Sensors and Torque Transducers - View related products

Description

This item is being discontinued.

The LCMCD is also available in standard configurations, with 0-25 to 0-20,000 lb ranges and standard threads. Please see the LCCD for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc maximum)
Output: 3.0 mV/V ±0.25%
Linearity: 0.03% FS
Hysteresis: 0.02% FS
Repeatability: 0.01% FS
Zero Balance: 1% FS
Creep in 20 min: 0.03% FS
Operating Temperature: -18 to 66°C (0 to 150°F)
Compensated Temperature: -18 to 66°C (0 to 150°F)
Thermal Effects:
Zero: 0.0027% FS/°C
Span: 0.0015% rdg/°C
Maximum Load: Safe, 150%; ultimate, 300%
Bridge Resistance: 350 Ω nominal
Construction: 17-4 PH stainless steel
Cable: 6 m (20') 4-conductor shielded 22-gage wire

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

LCMCD-10

Consult Sales

Availability:

10 kgf (22 lb)

LCMCD-25

Consult Sales

Availability:

25 kgf (55 lb)

LCMCD-50

€631.18

Availability: 1 week

50 kgf (110 lb)

LCMCD-100

Consult Sales

Availability:

100 kgf (220 lb)

LCMCD-250

Consult Sales

Availability:

250 kgf (551 lb)

LCMCD-500

Consult Sales

Availability:

500 kgf (1102 lb)

LCMCD-1K

Consult Sales

Availability:

1000 kgf (2204 lb)

LCMCD-2K

€716.95

Availability: 1 week

2000 kgf (4408 lb)

LCMCD-5K

Consult Sales

Availability:

5000 kfg (11,020 lb)

Accessories

MLBC-M12

€74.44

Availability: 8 weeks

Load Button for 250 to 1000 kgf ranges

MLBC-M20

€96.22

Availability: 9 weeks

Load Button for 2000 to 5000 kgf ranges

MREC-M20M

€50.22

Availability: 1 week

Swivel Rod End for 2000 to 5000 kgf ranges

TXDIN1600S

€207.78

Availability: In Stock

DIN Rail Mounted Signal Conditioner/Transmitter with Excitation & Remote Tare Input. 10-48 Vdc powered

† All amounts shown in EUR
Note: Each unit comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
