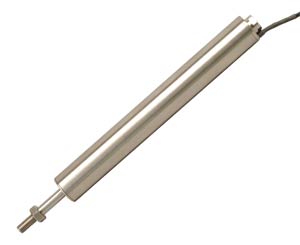

LVDT 4 to 20 mA Output Displacement Transmitters

LD630 Series

LVDT Displacement Transmitters, 4 to 20 mA Output | LD630 Series

LVDT Displacement Transmitters, 4 to 20 mA Output

726,87 LD630-5

  • LVDT Displacement Transmitters with better Than 0.2% Linearity
  • 5 to 300 mm Travel Lengths Available
  • 4 to 20 mA or 20 to 4 mA Versions Available
  • Rugged Stainless Steel Body Construction
  • IP67 Environmental Rating
  • Guided Core with Removable Spring for Easy Installation
Displacement and Proximity Transducers - View related products

Description

The LVDT Displacement Transmitters of the series LD630 Series have improved IP67-rated sealing, coupled with polymer guides with rigid carriers. These transmitters are accurate and reliable, especially in wet and corrosive conditions. Typical applications include automation actuators, industrial automation controls, and proportional actuators. Output options are either direct-acting 4 to 20 mA or reverse-acting 20 to 4 mA. The direct acting models will have 4 mA output when the guided core is fully out, and the output will increase to 20 mA when fully in.

SPECIFICATIONS
Linearity: <0.2% FSO
Excitation Voltage: 10 to 30 Vdc
Output Ripple: 0.02% FSO
Bandwidth: 500 Hz (-3 dB)
Storage Temp: -20 to 85°C
Operating Temp: 0 to 65°C
Vibration (Sinusoidal Frequency):
   10 to 50 Hz: 1 to 10 g rms linear Amplitude
   50 Hz to 1 kHz: 10 g rms Amplitude
Shock:
   Drop Testing: 1 m onto hard surface
   Topple Testing: 10 times each end onto hard surface
Cable: PFA, 2 m long
Core Material: Nickel-Iron
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Normal Action: 4 TO 20 mA output
LD630-5
726.87
Availability: 10 weeks

Displacement transducer with 4-20 mA output and 5 mm range
LD630-10
608.00
Availability: 10 weeks

Displacement transducer with 4-20 mA output and 10 mm range
LD630-15
813.69
Availability: 10 weeks

Displacement transducer with 4-20 mA output and 15mm range
LD630-20
797.88
Availability: 11 weeks

Displacement transducer with 4-20 mA output and 20 mm range
LD630-30
900.66
Availability: 1 week

Displacement transducer with 4-20 mA output and 30 mm range
LD630-50
883.31
Availability: 3 weeks

Displacement transducer with 4-20 mA output and 50 mm range
LD630-100
992.09
Availability: 1 week

Displacement transducer with 4-20 mA output and 100 mm range
LD630-150
1,023.61
Availability: 2 weeks

Displacement transducer with 4-20 mA output and 150 mm range
LD630-200
1,321.00
Availability: 10 weeks

Displacement transducer with 4-20 mA output and 200 mm range
LD630-300
1,286.56
Availability: 3 weeks

Displacement transducer with 4-20 mA output and 300 mm range
Reverse Action: 20 TO 4 mA Output
LD630-5-R
763.50
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 5 mm range
LD630-10-R
807.65
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 10 mm range
LD630-15-R
826.58
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 15mm range
LD630-20-R
870.76
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 20 mm range
LD630-30-R
914.93
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 30 mm range
LD630-50-R
971.72
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 50 mm range
LD630-100-R
1,016.00
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 100 mm range
LD630-150-R
1,099.68
Availability: 1 week

Displacement transducer with 20-4 mA output and 150 mm range
LD630-200-R
1,314.00
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 200 mm range
LD630-300-R
1,404.00
Availability: 11 weeks

Displacement transducer with 20-4 mA output and 300 mm range
Accessories
LD-TIP
€57.03
Availability: 7 weeks

Ball Tip Accessory
LD-UJOINT-KIT
€242.73
Availability: 6 weeks

U-Joint end kit (2 U-joints) to fit LD600 Series
All amounts shown in EUR
Ordering Example: (1) LD630-10-R 0 to 10 mm (0 to 0.4'') displacement transmitter with reverse 20 to 4 mA output, €807.65
