- Discontinued Linear Potentiometers, Compact

LP803

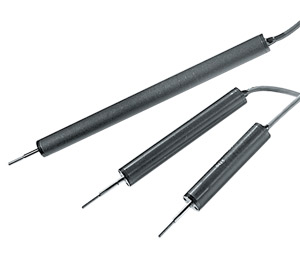

Compact linear displacement potentiometers

See All Models Below

PLACE ORDER

Compact 12.7 mm (0.5") Diameter
Easy, Accuract Displacement Measurements
Unique Conductive Film Design for Excellent Resolution
Rugged, Vibration Resistant

Description

The LP803 series has been discontinued. Please see the LDI-619-Series as a possible alternative or contact our Sales department.

SPECIFICATIONS
Resistance: 1000 Ω/in ±20%
Power Rating: 0.25 Watts/in
Linearity: 1% FS
Repeatability: 0.0127 mm (0.0005")
Resolution: 0.00127 mm (0.00005")
Operating Temperature: -40 to 80°C (-40 to 175°F)
Wiper Current: <1 µA
Starting Force: 1 oz max
Mechanical Travel: Range +1.27 mm (+0.05") minimum
Life: 1 billion @ 300 mm (12")/sec 1.8 m (70")/sec max, decreases life
Construction: Anodized cast aluminium (shaft, stainless steel)
