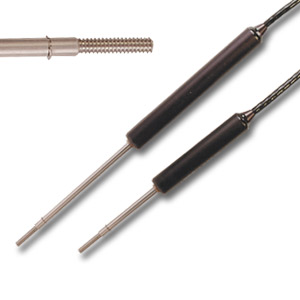

- Discontinued Miniature Linear Displacement Potentiometers

LP804

Linear displacement transducers

See All Models Below

PLACE ORDER

Miniature Design, only 9.5 mm (0.38") dia.
Rugged, Vibration Resistant
Unique Conductive Film for Excellent Resolution

Description

The LP801 series has been discontinued. Please see the LDI-619-Series as a possible alternative or contact our Sales department.

SPECIFICATIONS
Resistance: 1000 Ω/in ±20%
Power Rating: 0.25 Watts/in
Linearity: 1% FS
Repeatability: 0.0127 mm (0.0005")
Resolution: 0.00127 mm (0.00005")
Operating Temperature: -40 to 80°C (-40 to 175°F)
Wiper Current: <1 µA
Starting Force: 1 oz max
Mechanical Travel: Range +1.27 mm (+0.05") minimum
Life: 1 billion @ 300 mm (12")/sec 1.8 m (70")/sec max, decreases life
Construction: Anodized cast aluminium (shaft, stainless steel)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

LP804-1/2

Consult Sales

Availability:

Miniature linear potentiometer with 1/2" (12 mm) range

LP804-05

Consult Sales

Availability:

Miniature linear potentiometer with 5" (127 mm) range

Accessories

TX4-100

€49.97

Availability: In Stock

30 m (100') 4-conductor shielded wire

† All amounts shown in EUR
