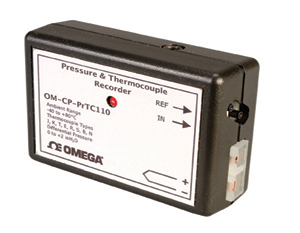

Differential Pressure and Thermocouple Data Logger - Discontinued

OM-CP-PRTC110

Differential Pressure and Temperature Logger | OM-CP-PRTC110

Differential Pressure and Temperature Logger

410,82 OM-CP-PRTC110-2H2O

5 year warranty CE
  • 5 Year Battery Life
  • Wide Temperature Range
  • Accepts Thermocouple Types J, K, T, E, R, S,B, and N
  • High Speed Download
  • Real-Time Operation
  • Programmable Start Time
  • Miniature Size

Description

This product has been discontinued. Please see OM-CP-TC101A or OM-CP-PR2000 for a potential replacement.

The OM-CP-PRT110 is a differential pressure and temperature data logger, ideal for use in factory and laboratory applications. The OM-CP-PRT110 features a real-time clock module that extends the battery life to >2 years and allows for high speed downloads. This device will measure and record up to 10,922 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security and stopped directly from your computer and its small size allows it to fit almost anywhere. The OM-CP-PRTC110 makes data retrieval quick and easy. Simply plug it into an available com port and our user-friendly software does the rest. The software converts a PC into a real-time strip chart recorder. Data can be printed in graphical and tabular format or exported to a text or Microsoft Excel® file.

Specifications
INTERNAL CHANNEL

Temperature Range: -20 to 80°C (-4 to 176°F)
Temperature Resolution: 0.1°C
Calibrated Accuracy: ±0.5°C (0 to 50°C)

REMOTE CHANNELS
Thermocouple Types:
J, K, T, E, R, S, B, and N
Thermocouple Connection: Female subminiature thermocouple connector
Cold Junction Compensation: Automatic, based on internal channel
Maximum Thermocouple Resistance: 1000 Ω, <1000 Ω recommended
Pressure Range (Nominal): 0 to 2 inH2O or 0 to 5 inH2O (differential)
Pressure Range (Max): -2 to +4 inH2O and -2 to +8inH2O (differential)
Pressure Connections: REF and IN ports via 1/16" ID, 5/32" Max OD, polyurethane tubing
Pressure Resolution: 0.002 inH2O and 0.005 inH2O
Pressure Specified Accuracy: Nominal range at 25°C
Combined Calibration Accuracy: ±0.5°C FSR max at 0.25% over 1 year
Start Modes: Software programmable immediate start or delay start up six months in advance
Real-Time Recording: May be used with PC to monitor and record data in real time
Memory: 10,922 readings per channel; software configurable memory wrap
Reading Rate: 2 seconds to every 24 hours, selectable in software
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V lithium battery (included), user replaceable
Battery Life: 2 years (15 minute reading rate at 25°C)
Data Format: Date and time stamped °C, °F, K, °R; inH2O,PSIG, inHg, mmHG, bar,
atm, Torr, Pa, kPa, and MPa
Time Accuracy: ±1 minute/month (at 20 to 30°C)
Computer Interface: PC serial or USB (interface cable required); 57,600 baud
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment: -20 to 80°C (-4 to 176°F), 0 to 95% RH non-condensing
Dimensions: 68 H x 41 W x 20 mm D (2.7 x 1.6 x 0.8") plus connective tube
Enclosure: ABS plastic
Weight: 250 g (8.8 oz)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
OM-CP-PRTC110-2H2O
Consult Sales
Availability:


Differential pressure (0 to 2 inH2O) and temperature data logger
OM-CP-PRTC110-5H2O
Consult Sales
Availability:


Differential pressure (0 to 5 inH2O) and temperature data logger
Accessories
OM-CP-IFC200
€168.91
Availability: In Stock

Windows software and 3.5 m USB interface cable
OM-CP-BAT105
€24.16
Availability: In Stock

Replacement 3.6V lithium battery
All amounts shown in EUR
Note: Comes complete with 3.6V lithium battery. Operator’s manual and cable are included with the OM-CP-IFC Windows software (required to operate the data logger and is sold separately).
