 - Discontinued 4 Channel Thermocouple Data Logger, Part of the NOMAD® Family

OM-CP-QUADTEMP-A and OM-CP-QUADTEMP2000

4 Channel Thermocouple Data Logger | OM-CP-QUADTEMP-A and OM-CP-QUADTEMP2000

4 Channel Thermocouple Data Logger

623,83 OM-CP-QUADTEMP-A

5 year warranty CE
  • 4 Channel Thermocouple Data Logger and 1 Ambient Channel
  • Real Time Operation
  • Programmable Start Time
  • Automatic Cold Junction Compensation and Linearization
  • External Power or User Replaceable Battery
Data Loggers - View related products

Description

Find how a Data Logger works on this link.

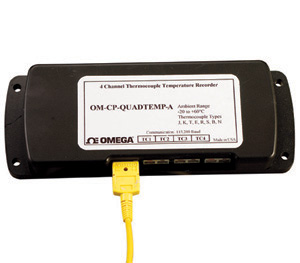

The OM-CP-QUADTEMP-A is a 4 Channel Thermocouple Data Logger, battery powered, standalone. The OM-CP-QUADTEMP2000 is the same 4-channel thermocouple data logger but with an LCD display. The OM-CP-QUADTEMP2000 features on display minimum, maximum and average statistics, as well as a user configurable graphics display that allows for any combination of channels to be displayed. These all-in-one compact, portable, easy to use devices will measure and record up to 500,000 readings per channel (channels can be disabled to increase memory).

The OM-CP-QUADTEMP-A and OM-CP-QUADTEMP2000 are a major leap forward in both size and performance. The real time clock ensures that all data is time and date stamped. The storage medium is nonvolatile solid state memory, providing maximum data security even if the battery becomes discharged. The data logger’s small size allows it to fit almost anywhere.

Data retrieval is simple. Plug it into an available COM port and the easy to use Windows® software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can also be exported to a text or Microsoft Excel file.

SPECIFICATIONS

INTERNAL CHANNEL TEMPERATURE SENSOR
Calibrated Accuracy:
+0.5°C (0°C to +50°C)
Temperature Resolution: 0.05°C
Temperature Range:
-20 to 60°C (-4 to 140°F)

EXTERNAL THERMOCOUPLE CHANNELS
Accuracy:* (Uniform 20°C Internal Temperature):
J, K, T, E, N: ±0.5°C
R, S, B: ±2.0°C
Temperature Resolution:
J, K, T, E, N:
0.1°C
R, S, B: 0.5°C
Thermocouple Connection: Female subminiature connectors
Cold Junction Compensation: Automatic, based on internal channel
Maximum Thermocouple Resistance: 1000Ω 100Ω recommended
Thermocouple Types and Ranges:
  Type J: -210°C to 760°C (-346 to 1400°F)
  Type K: -270°C to 1370°C (-436 to 2498°F)
  Type T: -270°Cto 400°C (-436 to 752°F)
  Type E: -270°C to 980°C (-436 to 1796°F)
  Type R: -50°C to 1760°C (-58 to 3200°F)
  Type S:- 50°C to 1760°C (-58 to 3200°F)
  Type B: +50°C to 1820°C (140 to 3308°F)
  Type N: -270°C to 1300°C (-436 to 2372°F)


GENERAL SPECIFICATIONS
Temperature Calibration: Digital calibration is available
through software
Recording Interval: 4/sec to 1/day selectable in software
Start Time: Start time and date are programmable through software
Real Time Recording: Device may be used with PC to monitor and record data in real time
Memory: 500,000 readings per channel (individual channels can be disabled to increase memory)
Power: 9V lithium battery (included) or external power via included ac adaptor
Battery Life:
OM-CP-QUADTEMP-A:
18 months typical;
CP-QUADTEMP2000: 18 months typical with display off, 3 months typical with continuous display use
Time Accuracy: +1 minute/month when RS-232C port is not in use
Data Format: Date and time stamped, °C, °F, °K, °R
Weight: 370 g (13 oz)
Computer Interface: PC serial, USB or RS-232C COM, 115,200 baud
Software:
WIN98/NT/2000/XP/VISTA (32-bit)/WIN 7 (32-bit) (VISTA and WIN 7 32-bit version only; VISTA and WIN 7 64-bit is not supported)
Operating Environment: -20 to 60°C (-4 to 140°F)
5 to 95% RH non-condensing
Dimensions:
OM-CP-QUADTEMP-A;

68 H x 183 W x 26 mm D
(2.7 x 7.24 x 1.02")
OM-CP-QUADTEMP2000;
68 H x 183 W x 29 mm D
(2.7 x 7.24 x 1.14")
Weight:
OM-CP-QUADTEMP-A;
430 g (15.2 oz)
OM-CP-QUADTEMP2000:
420 g (14.8 oz)
Material: Black anodized aluminum
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Click to expand/minimize a list of what others bought with theOM-CP-QUADTEMP-A
OM-CP-QUADTEMP-A
Consult Sales
Availability:


4 channel temperature data logger (includes universal 120/230 Vac 50/60 Hz ac adaptor)
Click to expand/minimize a list of what others bought with theOM-CP-QUADTEMP2000
OM-CP-QUADTEMP2000
Consult Sales
Availability:


4 channel temperature data logger with display (includes universal 120/230 Vac 50/60 Hz ac adaptor)
Click to expand/minimize a list of what others bought with theOM-CP-IFC200
OM-CP-IFC200
€168.91
Availability: In Stock

Windows software and 3.5 m USB interface cable
Click to expand/minimize a list of what others bought with theOM-CP-BAT103
OM-CP-BAT103
€42.51
Availability: 1 week

Replacement 9 V lithium battery
Thermocouples and Other Accessories

5SRTC-TT-KI-20-1M
€107.41
Availability: 6 weeks

5 piece pack of K type wire thermocouples with mini plug, 1 metre long

5SRTC-TT-TI-20-1M
€102.21
Availability: 6 weeks

5 piece pack of T type wire thermocouples with mini plug, 1 metre long
All amounts shown in EUR
Note: Operator’s manual and USB cable are included with the OM-CP-IFC200 (software is required to operate the data logger and is sold separately).
Ordering Example: (1) OM-CP-QUADTEMP-A 4 channel temperature data logger (includes universal 120/230 Vac 50/60 Hz ac adaptor), €623.83  plus (1) 5SRTC-TT-KI-20-1M pack of 5 K type beaded wire thermocouples with mini plug, €107.41, €623.83 + 107.41 = €731.24
