4 Channel Voltage Data Logger
Part of the NOMAD® Family - Discontinued

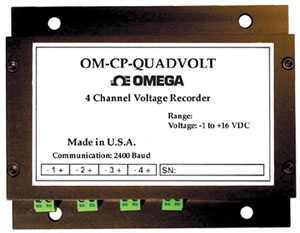

OM-CP-QUADVOLT

4 Channel Voltage Data Logger | OM-CP-QUADVOLT

4 Channel Voltage Data Logger

See All Models Below

5 year warranty CE
  • 4 Channel Voltage Data Logge with 16-Bit Resolution
  • Programmable Engineering Units, Scale Factor and Offset Value
  • Memory Wrap Around
  • Miniature Size
  • User Calibration Through Software
  • Real Time Operation

Description

Click on this link if you need more information about a Data Logger.

The OM-CP-QUADVOLT are low cost, high resolution, miniature battery powered, stand-alone voltage input dataloggers. In addition, the OM-CP-QUADVOLT allows the user to store user defined engineering units into the device as well as scale factors and offset values. This enables the user to easily linearize and scale any transducer that provides a voltage to any user required units automatically. This all-in-one compact, portable, easy-to- use device will measure and record up to 32,768 voltage measurements per channel.

The OM-CP-QUADVOLT is a major leap forward in both size and performance. Its real time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an empty COM port and our easy to use software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can be exported to a text or Microsoft Excel file.

Specifications
Input Channels: 4
Memory: 32,768 readings/channel
Input Connection: Removable screw terminal
Input Impedance: >10 K
ADC Resolution: 16 bits
Voltage Calibration: Digital calibration is available in software
Calibration Date: Automatically recorded within device to alert user when calibration is required
Recording Interval: 1 second to 12 hours selectable in software
Start Time: Start time and date are programmable through software
Memory Wrap Around: Selectable in software
Real Time Recording: Device may be used with PC to monitor and record data in real time
Power: 9 V lithium battery included; 120 Vac power optional
Battery Life: 1 year typical
Time Accuracy: ±1 minute per month at 20°C
Data Format: Date and time stamped, µV, mV, V
and other engineering units programmable through software
Computer Interface: PC serial, RS-232C COM or USB (interface cable required)
Software:
WIN98/NT/2000/XP/VISTA 32-bit
(VISTA 32-bit version only;
VISTA 64-bit is not supported)
Operating Environment: -40 to 80°C (-40 to 176°F) 5 to 95% RH non-condensing
Dimensions: 26 H x 111 W x 89 mm D (1.0 x 4.4 x 3.5")
Weight: 370 g (13 oz)
Material: Black anodized aluminum


INPUT RANGES OM-CP-QUADVOLT-100MV OM-CP-QUADVOLT-2.5V OM-CP-QUADVOLT OM-CP-QUADVOLT-30V
Nominal Input Range ±100 mV 0 to 2.5V 0 to 15 V 0 to 30
Measurement Range ±150 mV -0.25 to 2.75 V -1.0 to 16.0 V -2.0 to 32.0 V
Resolution 5 µV 0.1 mV 0.5 mV 1.0 mV
Accuracy ±0.01% FSR ±0.01% FSR ±0.1% FSR ±0.1% FSR
Input Impedance >1 KΩ* >1 KΩ* >10 KΩ >10 KΩ
Overload Protection ±5 V ±5 V ±30 V ±48 V
* >1M Ω during acquisition
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
OM-CP-QUADVOLT
Consult Sales
Availability:


4 channel voltage datalogger, 15 V input range
OM-CP-QUADVOLT-100MV
Consult Sales
Availability:


4 channel voltage datalogger, ±100 mV input range
OM-CP-QUADVOLT-2.5V
Consult Sales
Availability:


4 channel voltage datalogger, 2.5 V input range
OM-CP-QUADVOLT-30V
Consult Sales
Availability:


4 channel voltage datalogger, 30 V input range
Accessories
OM-CP-IFC110
Consult Sales
Availability:


Windows software and 1.2 m (4') RS-232 cable with DB9F termination
OM-CP-IFC200
€168.91
Availability: In Stock

Windows software and 3.5 m USB interface cable
OM-CP-BAT103
€42.51
Availability: 1 week

Replacement 9 V lithium battery
All amounts shown in EUR
Note: Operator’s manual and RS-232 cable are included with the OM-CP-IFC110 Windows software (software is required to operate the datalogger and is sold separately). To order data loggers with optional 120 Vac power, add suffix "-AC" to model number and add $100 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
