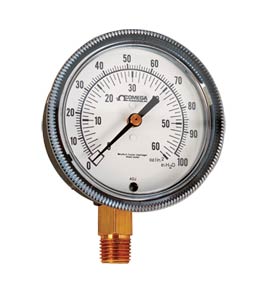

Low- Pressure Diaphragm Gauges

PGL-25 Series

Low- Pressure Diaphragm Gauges | PGL-25 Series

Low- Pressure Diaphragm Gauges

81,17 PGL-25L-60

1 year warranty
  • Corrosion-Resistant Bronze Diaphragm
  • 150% Overpressure Protection
  • Recalibration Screw on Dial
  • 2-1-2 ANSI Grade A Accuracy*
Pressure Gauges - View related products

Description

Click on this link if you need more information about Pressure Gauge.

SPECIFICATIONS
Dial: 64 mm (2.5") Dia.
Pointer: Black aluminum
Movement: Brass
Element: Bronze diaphragm
Connection: ¼ NPT
Window: Polycarbonate
Media: Clean, dry, non-corrosive gas only
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PGL-25L-10
81,17
Availability: 7 weeks

0 to 10 inch H2O low pressure gauge with 2 1/2" dial
PGL-25L-15
76,85
Availability: 6 weeks

0 to 15 inch H2O/0 to 9 oz/sq inch low pressure gauge with 2 1/2" dial
PGL-25L-35
76,85
Availability: 1 week

0 to 35 inch H2O/0 to 20 oz/sq inch low pressure gauge with 2 1/2" dial
PGL-25L-60
81,17
Availability: 6 weeks

0 to 60 inch H2O/0 to 35 oz/sq inch low pressure gauge with 2 1/2" dial
PGL-25L-100
81,17
Availability: 1 week

0 to 100 inch H2O/0 to 60 oz/sq inch low pressure gauge with 2 1/2" dial
PGL-25L-160
78,50
Availability: 1 week

0 to 160 inch H2O low pressure gauge with 2 1/2" dial
PGL-25L-200
81,17
Availability: 7 weeks

0 to 200 inch H2O low pressure gauge with 2 1/2" dial
PGL-25L-300
78,07
Availability: 1 week

0 to 300 inch H2O low pressure gauge with 2 1/2" dial
All amounts shown in EUR
Note: Cannot be oxygen cleaned.
* 2% first 10%, 1% middle 80%, 2% last 10%.
