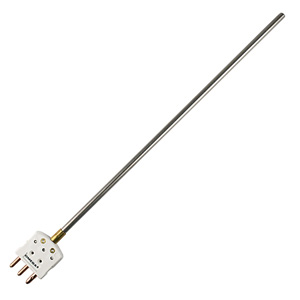

RTD Probe with Standard Connector

PR-13

RTD Probe With Standard Connector For Easy Connection
 | PR-13

RTD Probe With Standard Connector For Easy Connection

80,19 PR-13H-3-100-1/4-6

  • Standard male 3-prong connector (mating female sold separately)
  • Low temperature range: -50 to 250°C (-58 to 482°F)
  • High temperature range: -50 to 450°C (-58 to 842°F)
  • Extreme temperature range: -200 to 600°C (-328 to 1112°F)
  • Class "A" accuracy* conforming to IEC 60751
  • Diameters available: 1/8", 3/16" and 1/4"
  • 316 stainless steel sheath construction
  • PT100 Ω and PT1000 Ω platinum element offered
  • Standard probe lengths of 2, 3, 4, 6, 9, 12, 18 and 24 in.
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

The PR-13 series has been updated with low, high, and extreme temperature ranges; all of the new models will be PR-13(L,H,E)*. The older models have been discontinued.

The PR-13 RTD probe assembly has a 3-prong Omega "OTP" standard style connector for easy connection to extension cables, hand-held meters or other instrumentation. Probe diameter is 1/8", 3/16" or 1/4". The measuring portion of the probe can be simply inserted into a container to measure liquid temperature, or fixed into place in a pipe, tank, or vessel using an optional "BRLK" or "SSLK" compression fitting. These probes can be ordered with PT100 or PT1000 resistance element.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PR-13H-3-100-1/4-6
80,19
Availability: 1 week

RTD probe with connector, 6 in length
PR-13E-3-100-1/8-6
111,98
Availability: 5 weeks

RTD probe with connector, 6 in length
PR-13L-3-100-1/4-12
79,40
Availability: 5 weeks

RTD probe with connector, 12 in length
PR-13H-3-100-1/8-9
83,94
Availability: 5 weeks

RTD probe with connector, 9 in length
PR-13E-3-100-1/8-12
131,78
Availability: 1 week

RTD probe with connector, 12 in length
PR-13E-3-100-1/4-4
105,37
Availability: 1 week

RTD probe with connector, 4 in length
PR-13L-3-100-1/4-3
70,88
Availability: 5 weeks

RTD probe with connector, 3 in length
PR-13E-3-100-1/4-18
151,61
Availability: 5 weeks

RTD probe with connector, 18 in length
PR-13L-3-100-1/4-9
76,55
Availability: 1 week

RTD probe with connector, 9 in length
PR-13H-3-100-1/4-18
95,16
Availability: 5 weeks

RTD probe with connector, 18 in length
PR-13H-3-100-1/4-9
83,94
Availability: 5 weeks

RTD probe with connector, 9 in length
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) RANGE select from:
L for LOW (-50 to 250°C)
H for HIGH (-50 to 450°C)
E for EXTREME (-200 to 600°C)

(2) NUMBER OF WIRES select from:
3 for 3-WIRE

(3) OHMS select from:
100 for 100 OHMS
1000 for 1000 OHMS

(4) SHEATH DIAMETER select from:
1/8 for 1/8" DIAMETER
3/16 for 3/16" DIAMETER
1/4 for 1/4" DIAMETER

(5) SHEATH LENGTH select from:
2 for 2 INCHES
3 for 3 INCHES
4 for 4 INCHES
6 for 6 INCHES
9 for 9 INCHES
12 for 12 INCHES
18 for 18 INCHES
24 for 24 INCHES
Note: All combinations may not be valid, check spec sheet for valid part numbers.
