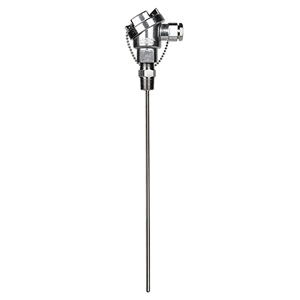

RTD Probe with Miniature Aluminum Protection Head

PR-14

RTD Probe with Miniature Aluminum Protection Head
 | PR-14

RTD Probe with Miniature Aluminum Protection Head

145,42 PR-14E-3-100-1/4-9

  • Mini aluminum protection head for areas where space is limited
  • Protection head lid is chained so that lid stays with assembly
  • Low temperature range: -50 to 250°C (-58 to 482°F)
  • High temperature range: -50 to 450°C (-58 to 842°F)
  • Extreme temperature range: -200 to 600°C (-328 to 1112°F)
  • Class "A" accuracy* conforming to IEC 60751
  • Choice of PT100 Ω and PT1000 Ω element
  • Standard probe lengths of 2, 3, 4, 6, 9, 12, 18 and 24 in.
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

TThe PR-14 series has been updated with low, high, and extreme temperature ranges; all of the new models will be PR-14(L,H,E)*. The older models have been discontinued.

Our PR-14 series RTD probe with miniature aluminum protection head and screw-on cap with chain includes PT100 Ω platinum RTD element or PT1000 RTD element, 1/2" NPT mounting threads and sheath of 316 stainless steel. When properly sized, these can go directly into a thermowell. All probes include a screw terminal block for easy connection of insulated copper extension wire. Replacement probes (without head assembly) are available as well as a "spring-loaded" option which allows for the probe to bottom out in a thermowell for quicker and more accurate response. These are ideal for use in vessels, tanks and similar structures where temperature measurements are needed.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PR-14E-3-100-1/4-9
145,42
Availability: 1 week

RTD probe with aluminum head, 9 in. length
PR-14E-3-100-1/4-6
138,67
Availability: 1 week

RTD probe with aluminum head, 6 in. length
PR-14E-3-100-1/4-12
152,15
Availability: 7 weeks

RTD probe with aluminum head, 12 in. length
PR-14E-3-100-1/8-9-SL
Consult Sales
Availability:


RTD probe, 9 in. length, spring-loaded
PR-14H-4-100-1/4-6
189.61
Availability: 7 weeks

RTD probe with aluminum head, 6 in. length
PR-14E-3-100-1/4-24
179.07
Availability: 7 weeks

RTD probe with aluminum head, 24 in. length
PR-14E-3-100-1/4-18
165.61
Availability: 1 week

RTD probe with aluminum head, 18 in. length
PR-14E-3-100-1/4-4
134.19
Availability: 1 week

RTD probe with aluminum head, 4 in. length
PR-14E-3-100-1/8-6
138.67
Availability: 7 weeks

RTD probe with aluminum head, 6 in. length
PR-14L-3-100-1/4-9
134.12
Availability: 1 week

RTD probe with aluminum head, 9 in. length
PR-14L-3-100-1/4-6
94.70
Availability: 7 weeks

RTD probe with aluminum head, 6 in. length
PR-14H-3-100-1/4-9
127.87
Availability: 7 weeks

RTD probe with aluminum head, 9 in. length
PR-14H-3-100-1/4-6
86.86
Availability: 7 weeks

RTD probe with aluminum head, 6 in. length
PR-14H-3-100-1/4-12
95.21
Availability: 1 week

RTD probe with aluminum head, 12 in. length
PR-14H-3-100-1/4-18
114.04
Availability: 7 weeks

RTD probe with aluminum head, 18 in. length
PR-14H-3-100-1/8-6
103.89
Availability: 7 weeks

RTD probe with aluminum head, 6 in. length
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) RANGE select from:
L for LOW (-50 to 250°C)
H for HIGH (-50 to 450°C)
E for EXTREME (-200 to 600°C)

(2) NUMBER OF WIRES select from:
3 for 3 WIRE
4 for 4 WIRE

(3) OHMS select from:
100 for 100 OHMS
1000 for 1000 OHMS

(4) SHEATH DIAMETER select from:
1/8 for 1/8" DIAMETER
3/16 for 3/16" DIAMETER
1/4 for 1/4" DIAMETER

(5) SHEATH LENGTH select from:
2 for 2 INCHES
3 for 3 INCHES
4 for 4 INCHES
6 for 6 INCHES
9 for 9 INCHES
12 for 12 INCHES
18 for 18 INCHES
24 for 24 INCHES

(6) OPTION 1 select from:
Nothing(leave field blank) for STANDARD
-TX for TEMPERATURE TRANSMITTER 0 TO 100°c
-TX12-TX-SCALED for TRANSMITTER SPECIALLY SCALED.

(7) OPTION 2 select from:
Nothing(leave field blank) for STANDARD
-SL for SPRING-LOADED

(8) OPTION 3 select from:
Nothing(leave field blank) for STANDARD
-RP for REPLACEMENT PROBE
Note: All combinations may not be valid, check spec sheet for valid part numbers.
