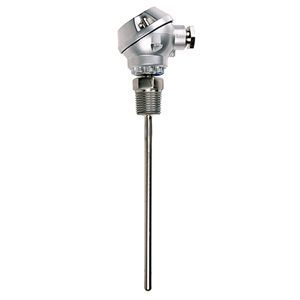

RTD Probe with Submini Aluminum Protection Head

PR-19

RTD Probe With Submini Aluminum Protection Head And Screw-On Cap
 | PR-19

See All Models Below

  • Subminiature aluminum protection head
  • Low temperature range: -50 to 250°C (-58 to 482°F)
  • High temperature range: -50 to 450°C (-58 to 842°F)
  • Extreme temperature range: -200 to 600°C (-328 to 1112°F)
  • Choice of PT100 Ω or PT1000 Ω element
  • Standard probe lengths of 2, 3, 4, 6, 9, 12, 18 and 24 in.
  • 316 stainless steel sheath construction
  • Extremely low profile for tight space restraints
  • Can be ordered with "spring-loaded" option for use in thermowell
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

The PR-19 series has been updated with low, high, and extreme temperature ranges; all of the new models will be PR-19(L,H,E)*. The older models have been discontinued.

Our PR-19 industrial probe with subminiature aluminum protection head and screw-on cap is manufactured with a 316 stainless steel sheath. It includes PT100 Ω platinum RTD element or PT1000 RTD element and 1/2" NPT mounting threads. These probes can be used alone, or can be placed directly into a thermowell. The spring load option should not be ordered unless a thermowell is used. All probes include a screw terminal block for easy connection of insulated copper extension wire. Replacement probes (without protection head assembly) are available as well as a "spring-loading" option which allows for the probe to bottom out in a thermowell for quicker and more accurate response.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PR-19E-3-100-1/8-6
170.69
Availability: 5 weeks

RTD probe with aluminum head, 6 in. length
PR-19E-3-100-1/4-6
170.69
Availability: 1 week

RTD probe with aluminum head, 6 in. length
PR-19E-3-100-1/4-12
187.26
Availability: 5 weeks

RTD PROBE, 12 in., with aluminum head
PR-19E-3-100-1/4-4
165.17
Availability: 5 weeks

RTD PROBE, 4 in., with aluminum head
PR-19H-3-100-1/4-6
133.09
Availability: 5 weeks

RTD PROBE, 6 in., with aluminum head
PR-19E-3-100-1/4-18
203.83
Availability: 5 weeks

RTD PROBE, 18 in., with aluminum head
PR-19E-3-100-3/16-12
187.26
Availability: 5 weeks

RTD PROBE, 12 in., with aluminum head
PR-19H-3-100-1/8-12
134.12
Availability: 5 weeks

RTD PROBE, 12 in., with aluminum head
PR-19L-3-100-1/4-12
123.27
Availability: 5 weeks

RTD PROBE, 12 in., with aluminum head
PR-19L-3-100-1/4-6
118.54
Availability: 5 weeks

RTD PROBE, 6 in., with aluminum head
PR-19L-3-100-3/16-12
123.27
Availability: 5 weeks

RTD probe with aluminum head, 12 in. length
PR-19L-3-100-1/4-18
128.02
Availability: 5 weeks

RTD probe with aluminum head, 18 in. length
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) RANGE select from:
L for LOW (-50 to 250°C)
H for HIGH (-50 to 450°C)
E for EXTREME (-200 to 600°C)

(2) NUMBER OF WIRES select from:
3 for 3 WIRE
4 for 4 WIRE

(3) OHMS select from:
100 for 100 OHMS
1000 for 1000 OHMS

(4) SHEATH DIAMETER select from:
1/8 for 1/8" DIAMETER
3/16 for 3/16" DIAMETER
1/4 for 1/4" DIAMETER

(5) SHEATH LENGTH select from:
2 for 2 INCHES
3 for 3 INCHES
4 for 4 INCHES
6 for 6 INCHES
9 for 9 INCHES
12 for 12 INCHES
18 for 18 INCHES
24 for 24 INCHES

(6) OPTION 1 select from:
Nothing(leave field blank) for STANDARD
-SL for SPRING-LOADED

(7) OPTION 2 select from:
Nothing(leave field blank) for STANDARD
-RP for REPLACEMENT PROBE
Note: All combinations may not be valid, check spec sheet for valid part numbers.
