Panel Mount Programmable Timer 1/16 DIN IP65  - Discontinued

PTC-13

Panel Mount Programmable Timer 1/16 DIN IP65 | PTC-13

Panel Mount Programmable Timer 1/16 DIN IP65

See All Models Below

1 year warranty CE
  • 11 Programmable Modes
  • 4 Timing Ranges
  • Security Code
  • 2- or 1-Time plus 1 Instantaneous Contact
  • Selectable Up/Down Timing
  • Programmable Reset Function
  • External Hold and Reset
  • IP65 Water and Dust Protection
  • Dual LED Displays

Description

This model has been discontinued. For a newer model with better features please see PTC-13-A Series

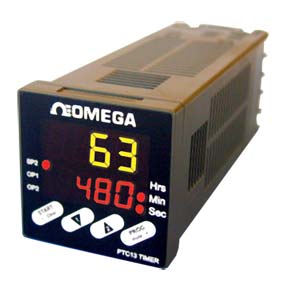

The PTC-13 is a panel-mount programmable timer, packaged in a 1/16 DIN IP65 rated housing. It is an extremely versatile product offering 11 operating modes applied to two timed output relay contacts. When only one of the timers is being used, the other output acts as a set of instantaneous changeover contacts. A single model provides timing from 0.1 seconds to 100 hours.

Specifications
Timing Ranges:
0 to 999.9 sec, 0 to 999.9 min,
0 to 99 min 59 sec, 0 to 99 hr, 59 min
Timing Modes:
DE, INT, DD, DE-2, IT-2, DD-2, DDE, DEIT, DP, CCT, SEQ, MON
Supply Voltage: 90 to 264 Vac @ 50/60 Hz or 12 to 24 Vac/Vdc
Supply Variation:±10% of supply voltage
Power Drain: 8 Va max
Contact Ratings:
OP1: 8 A @ 240 Vac, SPDT
OP2: 5 A @ 240 Vac resistive, SPST
Reset Time:100 msec max
Ambient Conditions
Working Temp:0 to 50°C (32 to 122°F)
Storage Temp:0 to 70°C (32 to 158°F)
Approvals: Complies with CE directives EN50081-1 and
EN50082-1 for EMC and EN61010-1 for low voltage
Weight: 150 g (5.3 oz)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PTC-13
Consult Sales
Availability:


Programmable timer, AC voltage
PTC-13-LV
Consult Sales
Availability:


Programmable timer, DC voltage
