PTC-16
PTC-16 Series Programmable Timer
See All Models Below
-
9 Programmable Modes
-
6 Timing Ranges
-
Security Code
-
2- or 1-Timed plus 1 Instantaneous Contact
-
Programmable Reset Function
-
External Hold and Reset
-
Selectable Up/Down Timing
-
LED Status and Timing Indicators
Description
This product is no longer available. For a potential replacement, please see PTC-16-A .

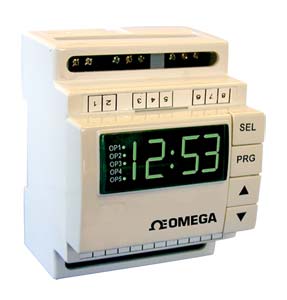

The PTC-16 timer has all of the features of the
PTC-14 panel-mount timer in a DIN rail mounting
package. The PTC-16 covers time ranges from
0.1 seconds to 100 hours in a single model and has
nine operating modes, two power supply options, and
two timed relay outputs. When only one timed output
is being used, the other output acts as a set of
instantaneous changeover contacts.
Specifications
Timing Ranges:
0 to 999.9 sec, 0 to 9999 sec,
0 to 9999 min, 0 to 99 min 59 sec, 0 to 99 hr 59 min,
23:59 in 24 hr clock mode
Timing Modes:
DE, DDE, DP, CCT, DE-2, IT-2, DE-IT, DD-2, 24HR
Supply Voltage:110 Vac and 230 Vac 50/60 Hz
or 12 to 24 Vac/Vdc
Supply Variation:±10% of supply voltage
Battery Backup:External 3 Vdc to retain clock on
24 hr mode only at loss of supply voltage
Power Drain: 3 Va max
Contact Ratings:
OP1: 8 A @ 240 Vac, SPDT
OP2: 5 A @ 240 Vac resistive, SPST
Reset Time:100 msec max
Ambient Conditions
Working Temp:0 to 50°C
Storage Temp:0 to 70°C
Approvals: Complies with CE directives EN50081-1 and
EN50082-1 for EMC and EN61010-1 for low voltage
Weight: 240 g |
|
Timing Modes
 |
CLOSE
