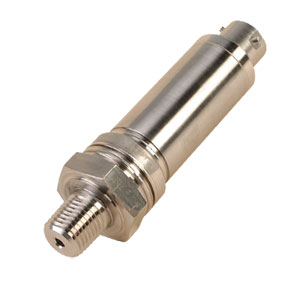

Sealed Gauge Transducers with 0 to 5 Vdc Output

PX409 Series

^€815,60 PX429-3.5KSG5V

PLACE ORDER

All 316L Stainless Steel Wetted Parts
Hermetically Sealed for Harsh Environments
High 0.08% Accuracy
Ranges from 0-100 psis to 0-5000 psis (sealed gauge)

Pressure Transducers - View related products

Description

The hermetically sealed gauge version of the PX409 Series features all welded Stainless Steel construction, 316L wetted parts and glass to metal seals (GMS) at the electrical outlets with either twist lock connector (PX429) or solder pins (PX449) terminations. This ensures that the unit is hermetically sealed from external environments and the media. Designed for use on automotive and aircraft test platforms and anywhere environmental concerns demand the most durable characteristics. The sealed gauge models have the PX409 Series micro machined silicon core that provides high accuracy, low drift and excellent long term stability in the harshest environments.

SPECIFICATIONS

Amplified VoltageOutput:
    0 to 5 Vdc Supply Voltage: 10 to 30 Vdc@10 mA
    0 to 10 Vdc Supply Voltage: 15 to 30 Vdc@10 mA
Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL max
Zero Balance: ±0.5% FS typical 1% max (1% typical, 2% max for 1 psi and below)
Span Setting: ±0.5% FS typical 1% max (1% typical, 2% max for 1 psi and below); calibrated in vertical direction with fitting down
Operating Temperature Range: -45 to 115°C (-49 to 240°F)
Compensated Temperature:
    Ranges >5 psi: -29 to 85°C (-20 to 185°F)
    Ranges ≤5 psi: -17 to 85°C (0 to 185°F)
Thermal Effects Zero (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Thermal Effects Span (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span

Still can't find the right model? Specify the perfect transducer for your application with this easy, step-by-step configurator.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Sealed Gauge range with Twist-Lock Termination and 0 to 5 Vdc Output

PX429-100SG5V

€776.29

Availability: 7 weeks

0-100 psis

PX429-150SG5V

€815.60

Availability: 7 weeks

0-150 psis

PX429-250SG5V

€820.12

Availability: 7 weeks

0-250 psis

PX429-500SG5V

€815.60

Availability: 7 weeks

0-500 psis

PX429-750SG5V

€815.60

Availability: 7 weeks

0-750 psis

PX429-1.0KSG5V

€815.60

Availability: 7 weeks

0-1000 psis

PX429-1.5KSG5V

€815.60

Availability: 7 weeks

0-1500 psis

PX429-2.5KSG5V

€815.60

Availability: 7 weeks

0-2500 psis

PX429-3.5KSG5V

€815.60

Availability: 7 weeks

0-3500 psis

PX429-5.0KSG5V

€815.60

Availability: 7 weeks

0-5000 psis

Sealed Gauge range with Glass to Metal Seal Pins and 0 to 5 Vdc Output

PX449-100SG5V

Consult Sales

Availability:

0-100 psis

PX449-150SG5V

€815.60

Availability: 7 weeks

0-150 psis

PX449-250SG5V

Consult Sales

Availability:

0-250 psis

PX449-500SG5V

Consult Sales

Availability:

0-500 psis

PX449-750SG5V

Consult Sales

Availability:

0-750 psis

PX449-1.0KSG5V

Consult Sales

Availability:

0-1000 psis

PX449-1.5KSG5V

Consult Sales

Availability:

0-1500 psis

PX449-2.5KSG5V

€815.60

Availability: 7 weeks

0-2500 psis

PX449-3.5KSG5V

Consult Sales

Availability:

0-3500 psis

PX449-5.0KSG5V

Consult Sales

Availability:

0-5000 psis

Accessories

PT06F10-6S-R

€38.61

Availability: In Stock

Mating connector for PX429 (sold separately) RoHS compliant

Order By Part Number

Part Number

Qty

Part Number

Qty

† All amounts shown in EUR
Note: Comes complete with 5-point NIST traceable calibration.
Note: To order 0 to 10 Vdc output, change “5V” in model number to “10V”, no extra charge.
