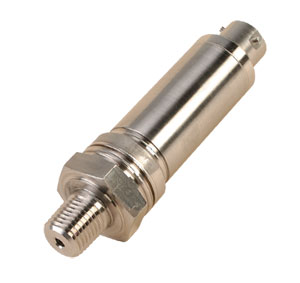

Sealed Gauge Transducers with mV/V Output

PX429 Series

 | PX429 Series

721,23 PX429-3.5KSGV

CE
  • Hermetically sealed for the Harshest Environments
  • Available with pin or Twist-lock Connector outputs
  • High 0.08% Accuracy
  • Ranges from 0-100 to 0-5000 psis (sealed gauge)
  • 316L Stainless Steel Wetted Parts
Pressure Transducers - View related products

Description

The hermetically sealed gage version of the PX429 Series features all welded Stainless Steel construction, 316L wetted parts and glass to metal seals (GMS) at the electrical outlets with either twist lock connector (PX429) or solder pins (PX449) terminations. This ensures that the unit is hermetically sealed from external environments and the media. Designed for use on automotive and aircraft test platforms and anywhere environmental concerns demand the most durable characteristics. The sealed gauge models have the PX409 Series micro machined silicon core that provides high accuracy, low drift and excellent long term stability in the harshest environments.

mV/V SPECIFICATIONS
Output: mV/V, 100 mV @ 10 Vdc (ratiometric 5 to 10 Vdc)
Supply Voltage: 10 Vdc
Input/Output Resistance: 5000 Ω ±20% typical
Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL max
Zero Balance: ±0.5% FS typical 1% max (1% typical, 2% max for 1 psi and below)
Span Setting: ±0.5% FS typical 1% max (1% typical, 2% max for 1 psi and below); calibrated in vertical direction with fitting down
Operating Temperature Range: -45 to 121°C (-49 to 250°F)
Compensated Temperature:
    Ranges >5 psi: -29 to 85°C (-20 to 185°F)
    Ranges ≤5 psi: -17 to 85°C (0 to 185°F)
Thermal Effects Zero (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Thermal Effects Span (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span

Pressure Transducer Configurator
Still can't find the right model? Specify the perfect transducer for your application with this easy, step-by-step configurator.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Twist-Lock Termination
PX429-100SGV
721.23
Availability: 7 weeks

10 mV/V Output, Sealed Gage 100psi
PX429-150SGV
721.23
Availability: 7 weeks

10 mV/V Output, Sealed Gage 150psi
PX429-250SGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 250psi
PX429-500SGV
721.23
Availability: 7 weeks

10 mV/V Output, Sealed Gage 500psi
PX429-750SGV
725.22
Availability: 7 weeks

10 mV/V Output, Sealed Gage 750psi
PX429-1.0KSGV
725.22
Availability: 7 weeks

10 mV/V Output, Sealed Gage 1000psi
PX429-1.5KSGV
721.23
Availability: 7 weeks

10 mV/V Output, Sealed Gage 1500psi
PX429-2.5KSGV
721.23
Availability: 7 weeks

10 mV/V Output, Sealed Gage 2500psi
PX429-3.5KSGV
721.23
Availability: 7 weeks

10 mV/V Output, Sealed Gage 3500psi
PX429-5.0KSGV
721.23
Availability: 7 weeks

10 mV/V Output, Sealed Gage 5000psi
Glass to Metal Seal Pins
PX449-100SGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 100psi
PX449-150SGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 150psi
PX449-250SGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 250psi
PX449-500SGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 500psi
PX449-750SGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 750psi
PX449-1.0KSGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 1000psi
PX449-1.5KSGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 1500psi
PX449-2.5KSGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 2500psi
PX449-3.5KSGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 3500psi
PX449-5.0KSGV
Consult Sales
Availability:


10 mV/V Output, Sealed Gage 5000psi
Accessories
PT06F10-6S-R
€38.61
Availability: In Stock

Mating connector for PX429 series transducers (RoHS compliant)
