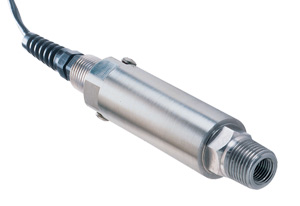

  Discontinued - Heavy Duty Industrial Transducer

PXM41-5V Metric Series

rugged pressure transducer | PXM41-5V Metric Series

rugged pressure transducer

See All Models Below

  • As an alternative see the “Pressure Transducer Builder”
  • All Stainless Steel Body
  • Heavy Duty Construction for Harsh Environments
  • Available in Gauge, Sealed Gauge and Absolute Pressure
  • U.S FM Approved Intrinsically Safe Standard
  • Special U.S MSHA Approved Model Available
Pressure Transducers - View related products

Description

OMEGA’s PXM41 Series is a high accuracy, rugged, low cost 5V output, industrial pressure transducer. Its all stainless steel construction makes it suitable for the harshest environments. The PXM41 is available in gauge, absolute or sealed models. Three metres of four core screened cable is standard. Twist-lock style or Micro DIN connectors are also available. A wide selection of amplified voltage and current output models in the PXM41 family makes this a truly versatile family of industrial transducers.

SPECIFICATIONS
Excitation:
10-35 Vdc
Output: 0.5 to 5.5 Vdc; adj± 10%
Zero Balance: 0.5 V; adj ±10% FSO
Agency Approval: FM Intrinsically Safe: IS/I.II.III/1/CDEFG - Standard
FM Hazardous Location IS/I/1/ABCD - Optional (4-20 mA output only)
Accuracy: 0.25% FS Linearity and Hysteresis Combined
Operational Temp Range: -47 to +121°C (-50 to +250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Span: 0.0054% of Rdg/°C
Zero: 0.009% of FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH Stainless Steel
Pressure Port: G 1/4 Male or Female, G 1/8 Male or Female
Electrical Connections:
Style "0" = 3 m cable
Style "1" = PTIH-10-6P connector
Style "6" = micro DIN
See Custom Configurations
Mating Connector:
Style "1" = PT06F-10-6S (not included)
Style "6" = included
Weight: 170 g (6 oz)



Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
All amounts shown in EUR
Note: Contact sales for pricing and to order FM or MHSA approved transducers.
For other options see the part number builder below.
