Air Temperature RTD Sensors

RTD-805 and RTD-806

Pt100 air temperature sensor | RTD-805 and RTD-806

Pt100 air temperature sensor

150,65 RTD-805

  • RTD Sensors For Monitoring of Air and Gas Streams; Mounts in Any Orientation
  • Exposed Sensing Element Has Fast Response Times in Air
  • Available with Stainless Steel or Plastic Housings
  • High-Accuracy, 100 Ohm, Class A DIN Platinum Element
  • Mating Connector & other accessory Sold Separately
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

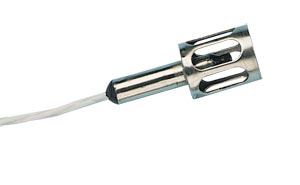

Omega's Air Temperature RTD sensors are designed for fast and accurate temperature sensing of still or moving air. The platinum thin film Pt100 sensing element is exposed to airflow while being protected from passing debris by a vented housing (available in both plastic and steel).

These sensors are made with a 1 metre long PFA insulated lead wire with a 3-pin miniature plug fitted. A mating socket is also supplied.
  RTD805 and RTD806 RTD sensors dimensions


Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Click to expand/minimize a list of what others bought with theRTD-805
RTD-805
150,65
Availability: In Stock

Steel housing, 1m of PFA insulated lead wire with mini plug and socket

RTD-806
151,25
Availability: 1 week

Plastic housing, 1m of PFA insulated lead wire with mini plug and socket
All amounts shown in EUR
