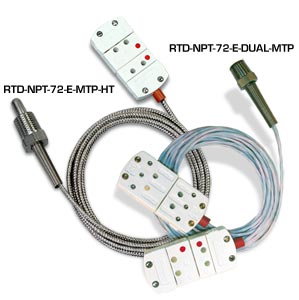

RTD Pipe Plug Probe with NPT Fitting

RTD-NPT

RTD Pipe Plug Probe with NPT Fitting | RTD-NPT

RTD Pipe Plug Probe with NPT Fitting

See All Models Below

  • High Pressure RTD Plug Sensor
  • Available in Either Single or Dual RTD Sensors
  • 72" Leads
  • Available with 1/8NPT or 1/4NPT Mounting Threads
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description


RTD Single Sensor
This RTD plug sensor is ideal for pressure vessel applications, pressurized containers and applications requiring a temperature sensor with an NPT mounting fitting. The single element design has a 1/4" diameter, 304 stainless steel probe that extends 1/2" from a 1/4"NPT mounting thread (optional 1/8"NPT mounting thread also available). Leads are 6' long, stranded #26 AWG nickel plated copper, PFA-insulated & jacketed with steel overbraid. Sensors are supplied with or without subminiature connectors. Pressure rating is 2500 psi., and the maximum temperature rating is 230°C (445°F).

RTD Dual Element Sensor
Dual RTD pipe plug probes come standard with flush sensing surfaces which minimize interference with moving parts, and 1/8"NPT mounting threads (optional 1/4"NPT mounting threads also available). The leads are 6' long, stranded #26AWG nickel plated copper, PFA insulated & jacketed cables with miniature connectors on each cable.

For complete product specifications see the Related Links section at the bottom of this page.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Pipe Plug RTD Sensors
RTD-NPT-72-E-1/4
123.00
Availability: 1 week

100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Steel Overbraid and Stripped Leads, 1/4 NPT Mounting Thread, 230°C (450°F) Max Temperature.
RTD-NPT-72-E-1/4-MTP
128.87
Availability: 1 week

100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Steel Overbraid and Miniature Male Connector, 1/4 NPT Mounting Thread and 230°C (450°F) Max Temperature.
RTD-NPT-72-E-1/8-MTP
128.88
Availability: 1 week

100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Steel Overbraid and Miniature Connectors, 1/8 NPT Mounting Thread and 230°C (450°F) Max Temperature.
RTD-NPT-72-E-1/4-MTP-HT
162.35
Availability: 1 week

100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Steel Overbraid and Miniature Connectors, 1/4 NPT Mounting Thread and 480°C (896°F) Max Temperature.
RTD-NPT-72-E-1/8-MTP-HT
159.22
Availability: 5 weeks

100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Steel Overbraid and Miniature Connectors, 1/8 NPT Mounting Thread and 480°C (896°F) Max Temperature.
Dual Element RTD Pipe Plug Sensors
RTD-NPT-72-E-DUAL-1/4-MTP
219.72
Availability: 5 weeks

Dual 100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Miniature Connectors, 1/4 NPT Mounting Thread and 230°C (450°F) Max Temperature.
RTD-NPT-72-E-DUAL-1/8-MTP
219.73
Availability: 5 weeks

Dual 100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Miniature Connectors, 1/8 NPT Mounting Thread and 230°C (450°F) Max Temperature.
RTD-NPT-72-E-DUAL-1/4-MTP-HT-S
254.98
Availability: 1 week

Dual 100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Seel Braid and Miniature Connectors, 1/4 NPT Mounting Thread and 480°C (896°F) Max Temperature.
RTD-NPT-72-E-DUAL-1/8-MTP-HT-S
250.07
Availability: 5 weeks

Dual 100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Steel Overbraid and Miniature Connectors, 1/8 NPT Mounting Thread and 480°C (896°F) Max Temperature.
Sold Separately, Mating Connector & clamp & other accessory Part Number
OTP-U-F
€12.86
Availability: In Stock

Mating Connector for OTP Termination end
MTP-U-F
€5.42
Availability: In Stock

Mating Connector for MTP Termination type
DP460-RTD
Consult Sales
Availability:


Economy Temperature Meter
DRF-RTD-115VAC-0/200C-4/20
Consult Sales
Availability:


RTD Signal Conditioner with 0 to 200C Range, 4 to 20mA Output and 115Vac Power
OM-DAQPRO-5300
Consult Sales
Availability:


Portable Handheld Data Logger
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) RTD Dual Element Sensor select from:
Nothing(leave field blank) for None
-DUAL for Dual 100 U Class A DIN Platinum thin-film elements

(2) Thread Size select from:
1/4 for 1/4 NPT
1/8 for 1/8 NPT

(3) Termination Options select from:
-TA3F for Audio Connector
-OTP for OTP Connector
-MTP for MTP Connector
Nothing(leave field blank) for Stripped Leads

(4) Temperature Range select from:
-HT for 480ºC max
Nothing(leave field blank) for 230ºC max

(5) Cable Options select from:
Nothing(leave field blank) for None
-S for Steel Overbraid for -DUAL only
Note: All combinations may not be valid, check spec sheet for valid part numbers.
