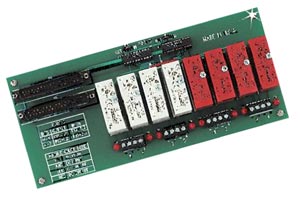

Interface Racks for Solid State Input/Output Modules

SSR-RACK Series

Interface Racks for Solid State Input/Output Modules | SSR-RACK Series

Interface Racks for Solid State Input/Output Modules

See All Models Below

3 year warranty CE
  • 48, 24 and 8 Channel Models
  • Direct Connection to the CIO Family of Digital I/O Plug-in Boards
  • On-Board Buffers
  • Powered by 5 Vdc
Signal Conditioners - View related products

Description

Most digital I/O boards can not be directly interfaced to real world devices. Output voltages are usually limited to TTL levels (0/5 Vdc) with a few milliamps of drive current. Inputs are also typically limited to a maximum 5 volt level. When higher voltages or currents are needed, OMEGA's solid state I/O modules are the perfect solution. Models are available for input or output signals in AC and DC voltage versions. The SSR-RACK series is a family of backplanes that accept the solid state I/O modules and provide a direct connection to OMEGA's CIO family of digital I/O PC plug-in boards. Three models are available; the SSR-RACK48, SSR-RACK24 and SSR-RACK08 which are 48, 24 and 8 channel models respectively.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
SSR-RACK08
Consult Sales
Availability:


8 channel solid state I/O module rack, accommodates 8 single channel I/O modules
SSR-RACK24
319.34
Availability: 1 week

24 channel solid state I/O module rack, accommodates 24 single channel I/O modules
SSR-RACK48
457.34
Availability: 10 weeks

48 channel solid state I/O module rack, accommodates 12 quad I/O modules
C37FF-2
Consult Sales
Availability:


2 ft. 37 pin cable
C50FF-2
Consult Sales
Availability:


2 ft. 50 pin cable
BP-POWER
Consult Sales
Availability:


3 connectors on a ISA card with backplate
PC-POWER-10
31.04
Availability: 10 weeks

10' power cable, required for the SSR-RACK08, included with the SSR-RACK24 and RACK48
ACI5A-C
Consult Sales
Availability:


Single AC input module
ACO5-C
18.88
Availability: 1 week

Single AC output module
DCI5-C
Consult Sales
Availability:


Single DC input module
DCO5-C
29.53
Availability: 1 week

Single DC output module
SSS-QI120-C
Consult Sales
Availability:


Quad Vac/dc Input module
SSS-QOA240-C
68.55
Availability: 1 week

Quad Vac output module
SSS-QOD60-C
Consult Sales
Availability:


Quad Vdc output module
All amounts shown in EUR
Note: Order racks and modules. Cable compatible with most CIO board with digital I/O
