Integrated Stepper Drives/Motors with Advanced Features and Control Options

STM Series

Integrated Stepper Drives/Motors | STM Series

Integrated Stepper Drives/Motors

470,67 STM17S-3AN

1 year warranty CE
  • Pulse and Direction
  • Analog Input (Velocity/Position)
  • Serial Commands via RS232/485/Ethernet
  • Stand-Alone Programmable (Q and IP Models)
  • Multi-Axis System with SiNet Hub 444 (STM23 only) or RS485 Interface (all models)
  • Microstepping Up To 51200 steps/revolution
  • Flex I/O With STM24

Description

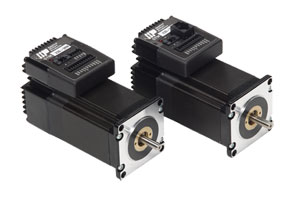

The STM is a drive + motor + control unit, fusing step motor, drive, and controller technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions. The "S" models offer control options such as step and direction, analog input, joystick control, and host commands using the Si Command Language (SCL). SCL allows for control via serial commands sent from a host device such as a PC or PLC. This permits the user to perform a variety of motion, I/O, and system status tasks in real time via a host serial device.

For Torque/Speed Curves, Click On "Manuals" Above

The"Q" and "IP" models add the capability of stand-alone programmable operation using the "Q" text-based programming language. This language offers high-level features such as multi-tasking, conditional programming, math functions, register access, and much more. All of the STM models offer RS232 and RS485 versions, as well as the option of a 1000-line encoder that is integrated into the motor housing. The encoder option provides stall detection and prevention; the controller senses rotor lag and reduces speed to avoid stalling. Models are available with 85 oz-in up to 340 oz-in torque. STM23 models also offer Ethernet and Ethernet/IP versions.

New! STM17 & STM24 models (see ordering table below)

ADVANCED FEATURES
Auto Set-Up:
At start-up the drive measures motor parameters, including the resistance and inductance, then uses this information to optimize the system performance.

Self-Test:
At power-up the drive diagnoses mis-wires and detects any open or shorted motor phases.

Torque Ripple Smoothing:
The drive smoothes the low-speed torque ripple which is inherent in all step motor systems.

Command Signal Smoothing:
Command Signal Smoothing can soften the effect of immediate changes in velocity and direction, making the motion of the motor less jerky.

Anti-Resonance/Electronic Damping:
Step motor systems resonate at certain speeds. The STM drive + motor automatically calculates the system’s natural frequency and applies damping to the control algorithm.



The ELC-PH12NNDT model PLC provides high-speed pulse outputs which can be used to drive any of Omega's step & direction stepper drives. The ELCSoft ladder logic software has built-in step motor functions which make programming your motion control application easy. The STM23S-2AN is an integrated stepper drive + stepper motor which accepts pulses from a PLC. Add the ELCSoft programming software, ELC-CBPCELC1 programming cable, and OMPS150A24 power supply for a complete motion-control system that costs less than $1000.

Protect your power supply from motor regeneration with the OMRC-050 regen clamp... see "Specs" above for details.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
'S' Models:   Pulse & Direction, Analog In, Joystick, Serial Commands
STM17S-3AN
470.67
Availability: 3 weeks

Integrated stepper drive/motor, 85 oz-in max torque, RS232
STM17S-3RN
551.55
Availability: 5 weeks

Integrated stepper drive/motor, 85 oz-in max torque, RS485
STM17S-3AE
647.16
Availability: 5 weeks

Integrated stepper drive/motor, 85 oz-in max torque, RS232, encoder
STM17S-3RE
707.17
Availability: 3 weeks

Integrated stepper drive/motor, 85 oz-in max torque, RS485, encoder
STM23S-2AN
566.27
Availability: 1 week

Integrated stepper drive/motor, 125 oz-in max torque, RS232
STM23S-2RN
580.96
Availability: 5 weeks

Integrated stepper drive/motor, 125 oz-in max torque, RS485
STM23S-2AE
713.32
Availability: 7 weeks

Integrated stepper drive/motor, 125 oz-in max torque, RS232, encoder
STM23S-2RE
750.10
Availability: 7 weeks

Integrated stepper drive/motor, 125 oz-in max torque, RS485, encoder
STM23S-2EN
617.73
Availability: 5 weeks

Integrated stepper drive/motor, 125 oz-in max torque, Ethernet
STM23S-2EE
790.82
Availability: 5 weeks

Integrated stepper drive/motor, 125 oz-in max torque, Ethernet, encoder
STM23S-3AN
595.67
Availability: 5 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS232
STM23S-3RN
603.02
Availability: 5 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS485
STM23S-3AE
735.39
Availability: 7 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS232, encoder
STM23S-3RE
779.51
Availability: 7 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS485, encoder
STM23S-3EN
676.55
Availability: 5 weeks

Integrated stepper drive/motor, 210 oz-in max torque, Ethernet
STM23S-3EE
808.94
Availability: 5 weeks

Integrated stepper drive/motor, 210 oz-in max torque, Ethernet, encoder
STM24SF-3AN
Consult Sales
Availability:


Integrated stepper drive/motor, 340 oz-in max torque, RS232
STM24SF-3RN
676.55
Availability: 3 weeks

Integrated stepper drive/motor, 340 oz-in max torque, RS485
STM24SF-3AE
806.01
Availability: 1 week

Integrated stepper drive/motor, 340 oz-in max torque, RS232, encoder
STM24SF-3RE
823.63
Availability: 3 weeks

Integrated stepper drive/motor, 340 oz-in max torque, RS485, encoder
'Q' Models:   Stand-Alone Programmable
STM17Q-3AN
647.16
Availability: 7 weeks

Integrated stepper drive/motor, 85 oz-in max torque, RS232
STM17Q-3RN
683.92
Availability: 7 weeks

Integrated stepper drive/motor, 85 oz-in max torque, RS485
STM17Q-3AE
808.94
Availability: 1 week

Integrated stepper drive/motor, 85 oz-in max torque, RS232, encoder
STM17Q-3RE
845.69
Availability: 3 weeks

Integrated stepper drive/motor, 85 oz-in max torque, RS485, encoder
STM23Q-2AN
661.85
Availability: 1 week

Integrated stepper drive/motor, 125 oz-in max torque, RS232
STM23Q-2RN
757.45
Availability: 7 weeks

Integrated stepper drive/motor, 125 oz-in max torque, RS485
STM23Q-2AE
889.83
Availability: 7 weeks

Integrated stepper drive/motor, 125 oz-in max torque, RS232, encoder
STM23Q-2RE
941.31
Availability: 7 weeks

Integrated stepper drive/motor, 125 oz-in max torque, RS485, encoder
STM23Q-2EN
772.16
Availability: 5 weeks

Integrated stepper drive/motor, 125 oz-in max torque, Ethernet
STM23Q-2EE
941.31
Availability: 1 week

Integrated stepper drive/motor, 125 oz-in max torque, Ethernet, encoder
STM23Q-3AN
698.62
Availability: 10 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS232
STM23Q-3RN
786.88
Availability: 7 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS485
STM23Q-3AE
958.10
Availability: 7 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS232, encoder
STM23Q-3RE
948.66
Availability: 7 weeks

Integrated stepper drive/motor, 210 oz-in max torque, RS485, encoder
STM23Q-3EN
838.34
Availability: 5 weeks

Integrated stepper drive/motor, 210 oz-in max torque, Ethernet
STM23Q-3EE
1,041.75
Availability: 5 weeks

Integrated stepper drive/motor, 210 oz-in max torque, Ethernet, encoder
STM24QF-3AN
822.41
Availability: 3 weeks

Integrated stepper drive/motor, 340 oz-in max torque, RS232
STM24QF-3RN
838.34
Availability: 16 weeks

Integrated stepper drive/motor, 340 oz-in max torque, RS485
STM24QF-3AE
970.71
Availability: 3 weeks

Integrated stepper drive/motor, 340 oz-in max torque, RS232, encoder
STM24QF-3RE
1,059.00
Availability: 17 weeks

Integrated stepper drive/motor, 340 oz-in max torque, RS485, encoder
'IP' Models:   Stand-Alone Programmable, Ethernet/IP
STM23IP-2EN
772.16
Availability: 7 weeks

Integrated stepper drive/motor, 125 oz-in max torque, Ethernet/IP
STM23IP-2EE
973.30
Availability: 1 week

Integrated stepper drive/motor, 125 oz-in max torque, Ethernet/IP, encoder
STM23IP-3EN
844.04
Availability: 7 weeks

Integrated stepper drive/motor, 210 oz-in max torque, Ethernet/IP
STM23IP-3EE
1,049.33
Availability: 5 weeks

Integrated stepper drive/motor, 210 oz-in max torque, Ethernet/IP, encoder
Accessories
OMPS150A24
Consult Sales
Availability:


Power supply for STM drive, 24 Vdc, 6.3 A
OMPS300A48
Consult Sales
Availability:


Power supply for STM drive, 48 Vdc, 6.7 A
OMRC-050
€243.68
Availability: 1 week

Motor regeneration clamp
Power Cord-SE
€12.18
Availability: 4 weeks

AC Power cord with stripped end termination
HUB 444 DIN RAIL
Consult Sales
Availability:


Multi-axis motion serial hub with DIN-rail mounting kit
OM-CONV-USB
€23.30
Availability: 1 week

USB to RS-232 Interface Converter; USB-A to DB9-male
OM-PL-USBS
Consult Sales
Availability:


USB to RS232 converter; works with Windows Vista and Windows 7.
OMG-USB-485-1
€174.02
Availability: 1 week

USB to RS-422/485/530 Interface Converter; USB-A to DB25-male
OMG-CA175
€19.40
Availability: 7 weeks

DB25F/DB9M cable (DB9 RS-485 pinout)
DSUB-9-MF
Consult Sales
Availability:


DIN rail interface module, 9-pin
DSUB-25-MF
Consult Sales
Availability:


DIN rail interface module, 25-pin
DSUB-9-MF-CBL
€48.42
Availability: 1 week

DSUB cable, 9-pin, 2 m (6.6'), male/female connectors
DSUB-25-MF-CBL
€34.92
Availability: 4 weeks

DSUB cable, 25-pin, 2 m (6.6'), male/female connectors
All amounts shown in EUR
Note: Power supply is required (sold separately).
Comes complete with software and download cable.
Ordering Example:  (1) STM23S-2AE Integrated stepper drive/motor with 125 oz-in holding torque and RS232 interface plus 1000-line encoder, €713.32
