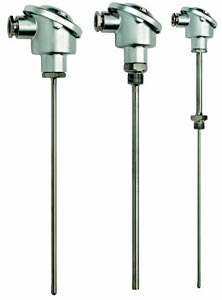

Pt100 & Thermocouple Assemblies with DIN B Head, for Industrial Applications

B-P, B-J, B-K, B-T, B-N Series

Pt100 & Thermocouple Assemblies with DIN B Head, for Industrial Applications | B-P, B-J, B-K, B-T, B-N Series

See All Models Below

  • Pt100 in Class A, 1/3 DIN & 1/10 DIN available
  • Thermocouples Type K, T, J and N. Accuracy IEC Class 1
  • Sheath Lengths of 20 to 500mm as Standard
  • Sheath Diameters of 6, 9, 11 and 15mm
  • Wide Range of Process Fittings/Threads
  • DIN Form B Protection Head Standard, Many Others Available, See pdf
  • Optional Head Mount Transmitters
  • Probes Individually Pressure and Insulation Tested
Thermocouples - View related products

Description

RTD brouchure banner Omega's industrial protection head temperature probes are offered in 3 different mechanical constructions and with many options and fittings, making them suitable for a wide range of applications.

The following may be specified at time of order: sensor type; fixed, replaceable or mineral insulated construction; accuracy class; diameter; insertion and lagging lengths; process fittings and optional head-mount transmitter.

The available options are summarised in the table below and the most popular models are listed for purchase in the to-order table below that. For other models please use the pdf data sheet to construct a part number for a sensor suitable for your specific requirements and use the "Order By Part Number" table, or contact our sales department.

Probe Options - See data sheet for full details and pricing
Sensor Type Internal Construction Accuracy
B-P = Pt100
B-J = Type J Thermocouple
B-K = Type K Thermocouple
B-T = Type T Thermocouple
B-N = Type N Thermocouple
F = Fixed Sensor Element
G = Replacement Pt100 Element
M = Mineral Insulated Element
Pt100:
A = Class A
1/3 = 1/3 DIN
1/10 = 1/10 DIN Thermocouple:
1 = Class 1
Diameter Length Threaded Fitting Transmitter
6 = 6mm
9 = 9mm
11 = 11mm
15 = 15mm
20-200mm
201-500mm
0 = No Thread
M18 = M18 x 1.5
G1/4 = 1/4" BSPP
G1/2 = 1/2" BSPP
R1/4 = 1/4" BSPT
R1/2 = 1/2" BSPT
Analogue Transmitter:
TX-PT100 for Pt100
TX-TC for Thermocouple
Please state scaling required
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
B-P-F-A-6-100-0
75,07
Availability: 6 weeks

6mm dia, 100mm long Industrial Pt100 Probe with no threaded fitting
B-P-F-A-6-200-G1/4
115,14
Availability: 3 weeks

6mm dia, 200mm long Industrial Pt100 Probe with G1/4 fitting
B-P-F-A-6-50-R1/2
80,64
Availability: 4 weeks

6mm dia, 50mm long Industrial Pt100 Probe with R1/2 (1/2" BSPT) fitting
B-P-F-A-6-20-G1/2
79,01
Availability: 4 weeks

6mm dia, 20mm long Industrial Pt100 Probe with G1/2 (1/2" BSPP) fitting
B-P-F-A-9-500-G1/2
106,99
Availability: 3 weeks

9mm dia, 500mm long Industrial Pt100 Probe with G1/2 (1/2" BSPP) fitting

Order By Part Number

Part Number
Qty
Part Number
Qty


All amounts shown in EUR
