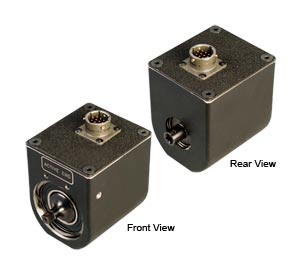

- Discontinued Rotary Torque Sensor
Socket Extension Connection

TQ502A Series

Socket Extension Rotary Torque Sensor

^€2.610,00 TQ502A-600

PLACE ORDER

Ideal for Use with Production Fastening Applications
Bi-directional Measurement
Ideal for Use with Drive/Socket Systems
Used for Static or Dynamic Torque Measurement

Load Cells, Force Sensors and Torque Transducers - View related products

Description

The TQ502A series has been discontinued. It is no longer available for sale in Europe.

SPECIFICATIONS
Rated Output: 1.5 to 3 mV/V nominal (calibration sheet provided)
Excitation: 20 Vdc maximum
Linearity: ±0.10% FS
Hysteresis: ±0.10% FS
Repeatability: ±0.1% FS
Zero Balance: ±1.0% FS
Operating Temp Range: -55 to 120°C (-65 to 250°F)
Compensated Temp Range: 21 to 75°C (70 to 167°F)
Thermal Effects:
    Zero: ±0.002% FS/°F
    Span: ±0.002% rdg/°F
Overload Capacity: 150% FS
Bridge Resistance: 1000 Ω
Maximum rpm: 5000
Construction:
    Sensor: Alloy steel
    Housing: Alloy aluminum
Electrical: Mating connector supplied

OPTIONS
Add as suffix after part number
-MB, Mounting Foot
-EN1024, 1024 ppr Angle Encoder

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

STANDARD TORQUE SENSORS

TQ502A-50

Consult Sales

Availability:

50 in-lb, 4 ft-lb, 6 NM, 1/4' drive, 2.0 mV/V output

TQ502A-125

Consult Sales

Availability:

125 in-lb, 10 ft-lb, 14 NM, 1/4' drive, 2.0 mV/V output

TQ502A-200

Consult Sales

Availability:

200 in-lb, 16 ft-lb, 23 NM, 3/8' drive, 2.0 mV/V output

TQ502A-600

Consult Sales

Availability:

600 in-lb, 50 ft-lb, 68 NM, 3/8' drive, 3.0 mV/V output

TQ502A-1.5K

Consult Sales

Availability:

1500 in-lb, 125 ft-lb, 170 NM, 1/2' drive, 3.0 mV/V output

TQ502A-2.4K

Consult Sales

Availability:

2400 in-lb, 200 ft-lb, 271 NM, 1/2' drive, 3.0 mV/V output

ACCESSORY

TQ513-514-FOOTMOUNT

Consult Sales

Availability:

User attachable foot mount

† All amounts shown in EUR
Note: Comes complete with operator’s manual.

Part Number Builder

Build Your Part Number Below

	(1)	(2)	(3)
TQ502A

Option Descriptions:

(1) Capacity select from:
-50 for 50 in-lb
-125 for 125in-lb
-200 for 200in-lb
-600 for 600in-lb
-1.5K for 1500in-lb
-2.4K for 2400in-lb

(2) Encoder Option select from:
Nothing(leave field blank) for No Option
-EN1024 for Integral 1024 ppr optical encoder add $545

(3) Bracket Option select from:
Nothing(leave field blank) for None
-MB for Foot mounting bracket add $85

Note: All combinations may not be valid, check spec sheet for valid part numbers.
