Reaction Torque Sensors, Flange to Shaft Mount, Metric, 0-0.175 N-m to 0-28 N-m

TQM202 Series

Reaction Torque Sensors

^€1.200,34 TQM202-1

PLACE ORDER

All Stainless Steel Case for Long Term Reliability in Industrial Environments
High Accuracy
Shielded Cable for Precise Low Noise Measurements
Heavy Duty Mounting for Positive, Non-Slip Connection

Load Cells, Force Sensors and Torque Transducers - View related products

Description

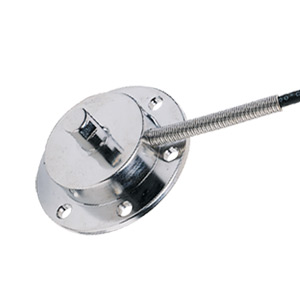

OMEGA’s TQM202 Series Torque Sensor is a small high accuracy flange or surface mount device designed for measuring reaction torque forces up to 28 N-m. The shaft attachment has three equally spaced flat surfaces to assure non-slip mounting without the use of a key. The all stainless steel construction provides long life in industrial environments, and its heavy duty construction assures long term high accuracy measurements.

The TQM202 is also available in Imperial configurations, with ranges from 0-25 oz-in to 0-250 in-lb.. Please see the TQ202 for complete details, or contact our Sales department for more information.

SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±5 Ohms
Accuracy: ±0.2% FSO
Zero Balance: ±2% FSO (Linearity, Hysteresis, and Repeatability Combined)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: 0.008% FSO/°C
Span: 0.008% Rdg/°C
Safe Overload:150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 1.5 m (5 ft) 4-conductor shielded PVC cable with Strain Relief
Protection Class: IP65

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

TQM202-0.175

€1.276,00

Availability: 1 week

Flange mount reaction torque sensor with 0 to 0.175 Newton meter range

TQM202-0.2

€1.340,75

Availability: 12 weeks

Flange mount reaction torque sensor with 0 to 0.2 Newton meter range

TQM202-0.7

€1.142,00

Availability: 10 weeks

Flange mount reaction torque sensor with 0 to 0.7 Newton meter range

TQM202-0.85

Consult Sales

Availability:

Flange mount reaction torque sensor with 0 to 0.85 Newton meter range

TQM202-1

€1,200.34

Availability: 12 weeks

Flange mount reaction torque sensor with 0 to 1 Newton meter range

TQM202-1.4

€1,142.00

Availability: 10 weeks

Flange mount reaction torque sensor with 0 to 1.4 Newton meter range

TQM202-2.8

€1,200.34

Availability: 1 week

Flange mount reaction torque sensor with 0 to 2.8 Newton meter range

TQM202-5.6

€1,142.00

Availability: 1 week

Flange mount reaction torque sensor with 0 to 5.6 Newton meter range

TQM202-11

€1,200.34

Availability: 5 weeks

Flange mount reaction torque sensor with 0 to 11 Newton meter range

TQM202-28

€1,200.34

Availability: 4 weeks

Flange mount reaction torque sensor with 0 to 28 Newton meter range

† All amounts shown in EUR
