Pneumatic Airline Tubing, used for compressed air systems

TYUTH95 Series Polyurethane Tubing 95 Durometer

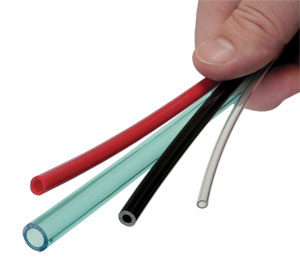

polyurethane pneumatic tubing for air lines

See All Models Below

PLACE ORDER

Kink and Abrasion Resistant
Resistant to Chemicals, Water, Fuel, Oil and Fungus
UV Stabilized
NSF61 Rated, Meets UL 94BH
Outstanding Flexibility and Memory
Temperature Range -40 to 73°C
Vacuum rating to 95 kpa
Available Colours: Black, Red, Green, Yellow, Blue, Clear, Translucent Blue.

Pumps & Mixers - View related products

Description

Omega’s TYUTH95 Series polyurethane pneumatic tubing is resistant to chemicals, water, fuel, oil and fungus. This product is extremely flexible and highly resistant to abrasion and kinking. In addition, polyurethane has excellent "memory" and can be stretched and flexed, but will return to its original shape. Omegaflex® air line tubing is made from 95A shore durometer, ether-based polyurethane and is an excellent choice for compressed air systems. It is ideal for Push-to-Connect airline fittings and easily attaches to pneumatic valves, air filters/regulators, pressure relief valve, and airline lubricators. This extruded tubing is a good choice for air tools and accessories.

SPECIFICATIONS
Temperature Range: -40 to 73°C
Vacuum Rating: To 95 kpa
Working Pressure: 3:1 Safety factor

CODE	COLOR
-BLK	Black
-Y	Yellow
-GN	Green
-BL	Blue
-R	Red
-TRBL	Translucent Blue
Note: Specifications listed are meant only as a guide. Each user must test the tubing under their operating conditions to determine the tubing’s suitability for the particular application.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Polyurethane Ether Tubing, 95A Shore Durometer. Imperial Sizes.

Use Part Number Builder Below for Full Selection

TYUTH95-1418-100-Y

€86.12

Availability: 6 weeks

1/4 in OD 1/8 in ID. Yellow. 100 feet

TYUTH95-1418-100

€67.37

Availability: 5 weeks

1/4 in OD 1/8 in ID. Clear. 100 feet

TYUTH95-1418-100-R

€68.61

Availability: 5 weeks

1/4 in OD 1/8 in ID. Red. 100 feet

TYUTH95-1418-100-TRBL

€65.29

Availability: 3 weeks

1/4 in OD 1/8 in ID. Translucent Blue. 100 feet

Polyurethane Ether Tubing, 95A Shore Durometer, Metric Sizes

TYUTH95-318-30-BLK

€23.37

Availability: 1 week

3.0mm OD - 1.8mm ID, 30m length, Black

TYUTH95-424-15

€15.41

Availability: 5 weeks

4.0mm OD - 2.4mm ID, 15m length, Clear

TYUTH95-64-15

€23.81

Availability: 5 weeks

6.0mm OD - 4mm ID, 15m length, Clear

TYUTH95-64-15-BLK

€23.81

Availability: 5 weeks

6.0mm OD - 4mm ID, 15m length, Black

† All amounts shown in EUR
Note: Standard colour is natural (clear).
Contact Sales for Delivery on Non-Stock Lengths
See Colour Option Table for colour availability and ordering codes.

Part Number Builder

Build Your Part Number Below

	(1)	(2)	(3)
TYUTH95

Option Descriptions:

(1) Outside Diameter and Inside Diameter select from:
-18066 for 1/8 in OD .066 in ID
-532332 for 5/32 in OD .094in ID
-316107 for 3/16 in OD .107 in ID
-1418 for 1/4 in OD .125 in ID
-14160 for 1/4 in OD .106 in ID
-38245 for 3/8 in OD .245 in ID
-318 for 3 mm ID 1.8 mm ID
-424 for 4mm OD 2.4 mm ID
-64 for 6mm OD 4mm ID
-85 for 8mm OD 5 mm ID

(2) LENGTH select from:
-2500 for 2500 ft bulk reels for O.D. tubing sizes 1/8in - 3mm - 4mm - 5/32in
-2000 for 2000 ft bulk reels for O.D. tubing size 3/16in
-1000 for 1000 ft bulk reels for tubing sizes 1/4in - 6mm
-500 for 500 ft bulk reels for tubing sizes 3/8in - 8mm
-100 for 100 ft for standard size diameters
-50 for 50 ft for standard size diameters
-30 for 30 meters for metric size diameters
-15 for 15 meters for metric size diameters

(3) COLOR select from:
Nothing(leave field blank) for Clear
-BLK for Black
-Y for Yellow
-GN for Green
-BL for Blue
-R for Red
-TRBL for Translucent Blue

Note: All combinations may not be valid, check spec sheet for valid part numbers.
