Wireless Pt100 Probe/Transmitter Assembly for Use in Hygienic Applications

UWRTD-TW-NB9W Wireless Temperature Sensors/Transmitters

Pt100 Temperature probe with wireless transmitter

^€570,50 UWRTD-NB9W-1PT304-14-4

PLACE ORDER

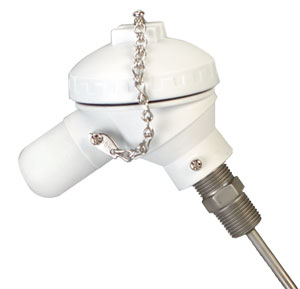

Stainless Steel Construction with White Polypropylene Transmitter Housing
Complete, Ready to Install and Operate Assembly is Available With Optional 3-A Approved Thermowells for CIP (Clean-in-Place) Hygienic Applications
Wireless Radio Transmitter and Antenna are Housed in the Probe Head
Free Software Converts Your PC Into a Multi-Channel Chart Recorder or Data Logger
Interface up to 48 Different Wireless Transmitters With One USB Receiver
Low Power Operation and Sleep Mode Allows for Long Battery Life
Each Wireless Probe Assembly Transmits Process Temperature, Ambient Temperature, Signal Strength and Battery Status in Real Time
Works with All OMEGA™ UWTC Series USB or Web Enabled Ethernet Receivers and Wi Series Meter/ Controller/Scanner and DIN Rail Receivers

Description

Click on this link if you need more information about Sanitary Sensors.

OMEGAs new Wireless RTD Probe Assemblies - UWRTD-NB9W Series for hygienic applications feature a complete, ready to install, pre-wired PT100 sensor and wireless transmitter package. Each battery powered wireless unit will transmit measurements back to a host receiver up to 120 m (400') away. Each unit comes factory assembled, tested, calibrated and preprogrammed for fast installation. When activated, the unit will transmit readings continuously at pre-set time intervals that were programmed by the user during initial setup and installation. Each unit measures and transmits: process temperature, ambient temperature wireless link signal strength and battery condition to a remote host and the data is displayed on the PC in real time using the free provided software.

SPECIFICATIONS
Available Types: 100 Ω (standard), 500 Ω, 1000 Ω (special order)
RTD Measurement Range:
0.00385: -200 to 850°C (-328 to 1562°F)
0.00392: -100 to 457°C (-148 to 854°F) (special order)
RTD Measurement Accuracy: ±0.5°C (1°F) of reading
RTD Measurement Resolution: 1°C/1°F
Operating Environment: -10 to 70°C (14 to 158°F)
RTD Probe/Sensor: Pt100, Class "A"
Computer Interface: USB (one programming cable included with all receivers)
Transmit Sample Rate: Programmable from 1 sample/minute to 1 sample/ every 5 seconds Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz, direct sequence spread spectrum, license free worldwide
RF Output Power: 10 dBm (10 mW)
Range of RF Link: Up to 120 m (400') outdoor line of sight; up to 40 m (130') indoor/urban
Software (Included Free): Requires Windows^® 98, ME, 2000, XP or Vista (32 bit)
Internal Battery: One 3.6V lithium, 8.4 Ah capacity (C-cell) included
Battery Life (Typical): (3 years) 1 sample/minute reading rate @ 25°C (77°F)
Data Transmitted to Host: Process reading, ambient reading, transmit strength and battery condition
Probe Assembly Material: Stainless Steel
Transmitter Housing Material: White polypropylene head

Because of transmission frequency regulations, these products may only be used in the United States, Canada and Europe.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Accessories

USB Receivers with Software and Cable for Data Display, Graphing and Logging on a PC

UWTC-REC1

€468.91

Availability: 7 weeks

48-channel receiver/host (USB powered)

UWTC-REC2-V1

€589.19

Availability: 7 weeks

48-channel transceiver with 1 channel 0-5 Vdc output

UWTC-REC2-D-V1

€654.64

Availability: 7 weeks

48-channel transceiver with 1 channel 0-5 Vdc output and backlit local display

UWTC-REC2-V2

€568.11

Availability: 6 weeks

48-channel transceiver with 1 channel 0-10 Vdc output

UWTC-REC2-D-V2

€654.64

Availability: 6 weeks

48-channel transceiver with 1 channel 0-10 Vdc output and backlit local display

UWTC-REC2-MA

€568.11

Availability: 6 weeks

48-channel transceiver with 1 channel 4-20 mA output

UWTC-REC2-D-MA

€631.22

Availability: 6 weeks

48-channel transceiver with 1 channel 4-20 mA output and backlit local display

Receiver with Ethernet Port and Built-In Web Server. Works with up to 32 Transmitters for Viewing/Logging Data via an Ethernet Network or the Internet

Panel Mount Scanner and Controller with Built-In LED Display. Automatically Scans Up to 8 Transmitters. With PID Control Output and Ethernet. (See Related Links Below)

wi833-U

Consult Sales

Availability:

with 2 relay control/alarm outputs

wi844-U

Consult Sales

Availability:

with two pulsed 10 Vdc @ 20 mA control outputs

wi852-U

Consult Sales

Availability:

with analogue output selectable as either control or retransmission of process value, and SSR

wi853-U

Consult Sales

Availability:

with analogue output and single relay

DIN Rail Mount Scanner and Controller. Automatically Scans Up to 8 Transmitters. With PID Control Output and Ethernet. (See Related Links Below)

wiDR53-U

Consult Sales

Availability:

with analogue output for control or retransmission and single relay

wiDR52-U

Consult Sales

Availability:

with analogue output and single SSR

wiDR44-U

Consult Sales

Availability:

with two pulsed 10 Vdc @ 20 mA outputs

wiDR33-U

Consult Sales

Availability:

with dual relay outputs

Batteries

UWTC-BATT-C

€86.80

Availability: In Stock

Replacement battery assembly for models UWRTD-NB9W

† All amounts shown in EUR
Note: Because of transmission frequency regulations, these products may only be used in the United States, Canada and Europe.
Ordering Example: (1) UWRTD-NB9W-1PT304-14-6 Wireless Pt100 probe/transmitter. 1/4, €589.19
